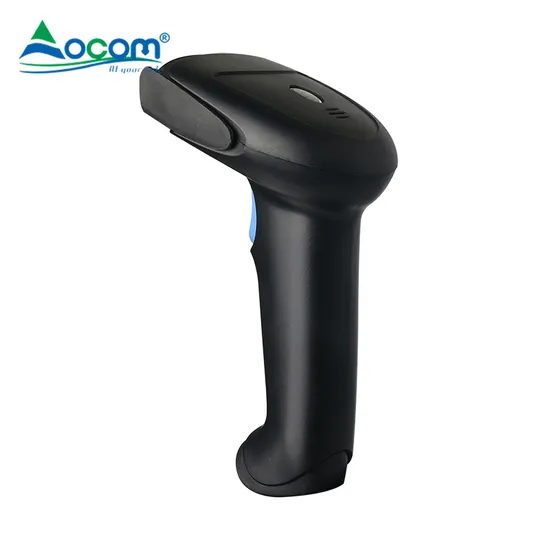

Factory Promotion Wired 2D Handheld USB Bar Code Reader

Product Description

Factory Promotion Wired 2D Handheld USB Bar Code Reader OCOM is proud to offer our customers best-in-class pos related items, it covers mini prtiner, pos printer, barcode printer, dot matrix printer, barcode scanner, pda, pos machine, touch monitor, customer display, cash drawer, usb/rs232 trigger, money counter...
We are very confident on our quality and price. Please do give us an opportunity to test our sample! You will find it is worth doing it.

Feature: High Performance imaging technology Omni-directional scanning 4mil excellent scanning accuracy Multi special function setting supported High compatibility for all major 1D and 2D symbols Can read the barcode on the scren and color barcode
Application:
Retrospective management of production in electronic industry,retrospective management of light industry production, warehouse management of online shop, logistics, and normal barcode scanner application etc.
Specification:

General
Model	OCBS-2017
Color	Black
Material	ABS+PC
Processor	32-bit ARM MCU + DSP
Interface	USB; USB virtual COM; RS232
Prompt mode	Buzzer, indicator(LED)
IP grade	IP42
Power consumption	375mW(Working);226mW(standy);750mW(Max)
Power supply	DC 5V ±5%
OS support	Linux,Android,Windows XP,7,8,10,MAC
Performance
Sensor	CMOS
Light source	Red LED(Aiming)+White LED(Lighting)
Resolution	≥4mil(PCS90%,CODE 39)
Error rate	1/5 million
Motion Tolerance	25cm/s
Reading Mode	Image
Trigger mode	Manual,Continuous scanning,Auto-sensing
ESD Protection	15KV air discharge
Shock resistance	1.5m free fall on concrete surface
Symbolic contrast	≥25%
Barcodes	1D:Code25-Interleaved , Code25-Standard , Code25-Matrix , Code39-Regular, Code39-FullASCII, Code32, Code93-Regular, Code93-FullASCII, Code128, EAN/GSL/UCC-128Auto ,Codabar,MSI ,EAN/JAN-13,UPC-A,JAN-8,UPCE 2D:PDF417, QR Code, Data Matrix
Reading depth	Code39 4.17mil(15bytes):4cm-8cm Code128 4.17mil(16bytes):7cm-15cm Data Matrix 10.83mil(8 bytes):3cm-9cm Code QR 10.83mil(8 bytes):7cm-12cm
Scanning Angle	Roll360°,Pitch30°,Yaw45°
Physical
Weight	Net:320g Gross: 400g
Package box	195*105*80mm
30 in 1 carton	570*430*280mm/7.0kg
Environment
Working temperature& humidity	0 to 45 degrees centigrade, 10%~80% No condensation
Storage temperature& humidity	-20 to 60 degrees centigrade , 10%~90% No condensation

About us:

OCOM is a leading One-stop POS and Auto-ID Related Products Supplier which is qualified by Global Fortune 500 company. We have Top 1 level Trade Assurance guarantee.
OCOM's products portfolio covers Thermal Printer, Barcode Printer, DOT Matrix Printer, Barcode Scanner, Data Collector, POS Machine and other POS Peripherals products, which are widely used for retailing, restaurant, bank, lottery, transportation, logistics, and other applications. We have ISO, CE, FCC, BIS and other required certifications.
Since established in June 2007, OCOM have been sticking to the quality system of ISO9001: 2008. We focus on reliable products quality and competitive price. We were serving more than 2600 customers over 163countries, 50 of them are the biggest distributors in their territory. Our main markets are in Europe, Australia, and fast growing South America and Africa. The customer list includes famous Unilever, O2, Equicom...
OCOM's mission is to be the compelling choice for our partners, based on our three basic beliefs "Integrity based, Strive for excellence, Win-win cooperation", we would like establish stable and reliable partnerships with customers all over the world. OEM/ODM is welcome.
Together we quest for the best.

Why you choose us?
Leading One-stop supplier for POS related products with wide products range; Qualified by Global Fortune 500 Companies; Tier 1 customers including Unilever, O2, Star ... 2600+ customers cover 163 countries; Professional sales team and fast respond within 24 hours; Strong R&D with 12 years OEM/ODM experience; Efficient and flexible manufacturing ensure short lead time; Reliable Quality with ISO 9001, FCC, CE , Rohs, Soncap, SASO, POA, BIS Certificates ; Flexible cooperation without MOQ limitation, different quantity different price; No worry after sales with 12+1 months warranty and online technical support; Shortlisted in "China Best Employer" Belief: "Integrity Based, Strive for Excellence, Win-win Cooperation" for long term cooperation.
FAQ:
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.
3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by szocomtech.en.made-in-china.com.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.

Contact us you will get what more than you can see !

---
