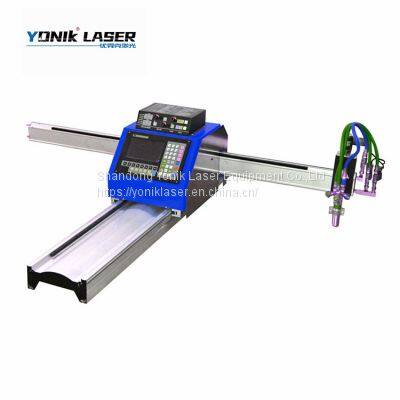

This portable cnc plasma and flame cutting machine is specially developed for steel plate cutting, two kinds cutting modes are provided: plasma and flame cutting,working size can be customized as required, this portable cnc plasma and flame cutting machine is characterized of easy operation, compact structure and competitive price. It is widely used for automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.
If you also have pipe cutting demand , we can add a rotary for pipe cutting , size can be customized .
Power source
| machine:AC220V/50hz / plasma cutter:AC380V/50hz
|
Effective cutting width
| 1500mm
|
Effective cutting length
| 3000mm ( length can be customized)
|
Cutting process
| plasma/ flame
|
Cutting thickness(flame)
| 6.0-150mm (oxygen+acetylene or propane)
|
Cutting thickness(plasma)
| 0.5-20mm Depending on the customer's plasma power supply
|
Cutting speed
| 20-3500mm/min (max.4000mm/min)
|
Cutting accuracy
| ±0.5m
|
Torch lifting distance
| ≤80mm
|
Applicable gas type
| Oxygen and propane or acetylene
|
Software
| Starcam, Fastcam
|
Working interface
| Chinese and English (other languages can be customized)
|
CAD drawing
| nesting cut code
|
Processing Materials
| carbon steel, stainless steel, aluminum sheets, galvanized sheets
|
