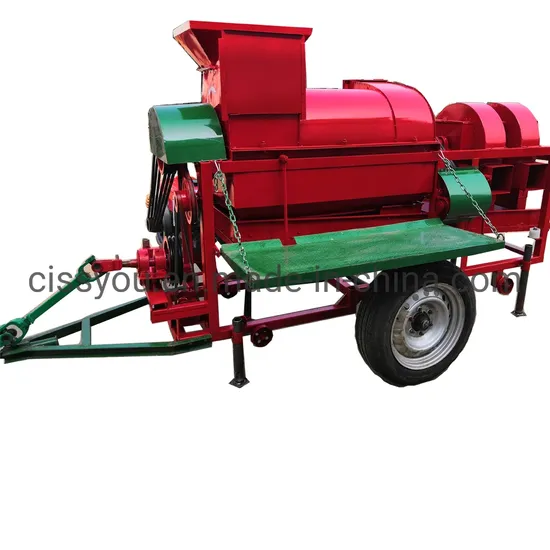

Multi Crop Sorghum Soybean Maize Thresher Machine

Product Description

Multifunctional corn/rice/wheat/sorghum/soybean/millet thresher machine/multi crop sheller machine
Application:
It is widely applied in the livestock breeding, small farm, small feeds producing company, grain and cooking oil processing factory, wind plant, chemical plant, pharmaceutical factory, and so on.
Brief introduction
1. The rapeseed thresher is equipped with a walking wheel, which is more convenient for mobile processing and threshing.
2. The machine can match gasoline engine, diesel engine, or electric motor as driven power.
3. It has a built-in manganese steel knife, and the canola rod is easily chopped. The vibrating screen drive adopts a toothed triangular belt, which makes transmission more powerful.
4. Thethresher is with automatic separation barrel to ensure cleaner rapeseed; whole-feed type, no need to manual grip.
Advantages:
1) Simple structure
2) Easy to operate
3) Keep maintenance
4) High efficiency
Work principle:
1) Main parts: Feed hopper, roller, concave, frame
2)Please feed the crop uniformly in a row. After assembly rubbing,squeezing,colliding ext. to make the grain away, the flow out through the concave.
Installation:
1) Please put the rice/wheat thresher on the flat place
2) Please fix the right motor
3) Please check the V-belt carefully and adjust the direction of the motor.
4) Please adjust the space between rollers and concave
5) Do make sure the screw tight
6)Do make the thresher spinning 3-5 minutes to assure no any abnormality happen, then start to work.
Technical information:

Model	Unit	WS5TD-880
Matched power	hp	7.5-11kw electric motor
		12-18 Hp diesel engine
		12-18 Hp diesel engine
Productivity	kg/ hour	maize: 3000kg\h
		Sorghum: 1000-2000kg\h
		Soybean: 300-600kg\h
Threshing rate	%	>98
Breakage rate	%	<1
Rotating speed of main shaft	r/m	500-700
Weight	kg	460

FAQ:
Q:what is the capacity of your machine?
A:capacity from 400kg/h-1500kg/h
Q:what power will use with your machine?
A:the power can be motor,diesel engine and gasoline engine
Q:whether the machine can move easily?
A:our machine have two type wheel,one is iron tyre,which can move in level road,another is pneunatic tyre,which also can move in muddy road.
Q:how to load,in whole set or in CKD?
A:small model like 40,50model, can load in whole set.big model can choose whole set or in CKD,we will supply installation instruction and video.
Q:If delivery in CKD,how to install?
A:we can supply installation instruction and video,and our engineer also can go abroad to install.our engineer have rich abroad installation experience.

---
