US$62,000.00-72,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Item
CNC Deep Hole Drilling Machine
Workbench Size
L1400mm X W700mm
Max. Drilling Depth
380mm
Drill Hole Inner Diameter
Dia.1.5~25mm
Spindle Specifications
Bt40
X-Axis Displacement
1200mm
Z-Axis / Z2-Axis Displacement
480/480mm
Automation
Automatic Tool Change and Guide Sleeve
Function
Drilling and Milling Compsite
Transport Package
Standard Exporting Package
Specification
4400x3200x3500mm
Production Capacity
500 Sets/ Year
Product Description

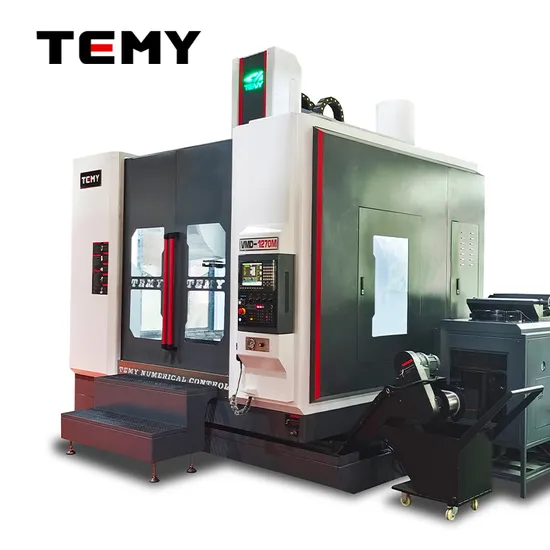

4-Axis vertical deep hole drilling Machine
Model: VMD-1270M
Based on the four-axis vertical deep-hole drill, this machine is equipped with high-performance intelligent tool library and telescopic guide sleeve base through scientific and technological innovation. It can perfectly realize the functions of automatic gun drill and guide sleeve, greatly improving the processing efficiency and saving invalid time. Intelligent tool library can be loaded with gun drill, milling cutter, twist drill, U drill, tapping, guide sleeve and other tool accessories, which provides powerful support for diversified processing. It can switch freely in drilling, milling and tapping processes. It is suitable for the processing of various complex parts, such as automotive parts, medical equipment, die manufacturing, etc. The field has been widely used.
Automatic Tool Change and Guide Sleeve
Drilling and Milling Compsite Machine
Parameter:
| ITEM | UNIT | VMD-1270M |
| Machining capacity | | |
| Drill hole inner diameter | mm | Φ1.5~Φ25 |
| Max. drilling depth | mm | 380 |
| Machining stroke | | |
| X-axis displacement | mm | 1200 |
| Y-axis displacement | mm | 700 |
| Z-axis / Z2-axis displacement | mm | 480/480 |
| Workbench | | |
| Size (L × W) | mm | 1400*700 |
| Max. Loading capacity | kg | 2000 |
| Speed and Main Spindle | | |
| Spindle taper hole | | BT40 |
| Max. spindle speed | rpm/min | 10000 |
| Feed rate | mm/min | 1~300 |
| System | | |
| Control system | / | |
| Power | | |
| Spindle motor power | KW | 7.5/11 |
| X-axis servo motor power | KW | 3.9 |
| Y-axis servo motor power | KW | 5.9 |
| Z-axis / Z2-axis servo motor power | KW | 5.9/5.9 |
| Total power | KW | 25 |
| Cooling System | | |
| Cooling tank capacity | L | 200 |
| Cutting oil cooling pressure | KG/cm² | 0-150 |
| Cutting oil flow range | L/min | 6-60 |
| Chip conveyer system | | |
| Chip conveyor | / | |
| Size & Weigh | | |
| Machine weight | kg | 9000 |
| Machine size (L × W×H) | mm | 4400×3200×3500 |
>>
