90-Degree Vertical Cutting 5 Axis Dental Laboratry Xt-50 Dry Zirconia Milling Machine

Product Description

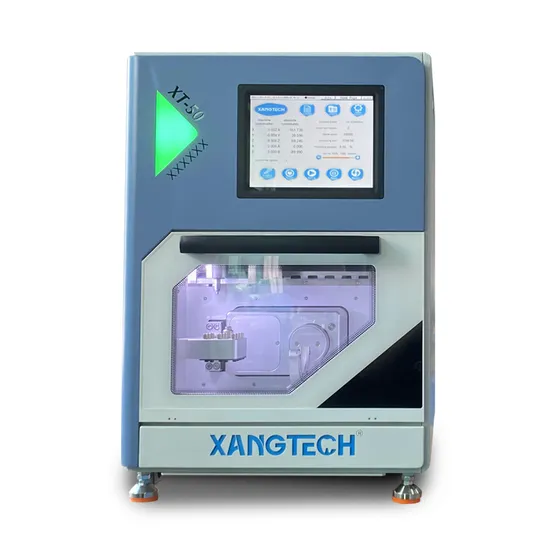

XT-50 Milling Machine
The XANGTECH XT-50 5 axis dental dry milling machine is an ideal choice for dental laboratories and clinics.
It is an open system.It can process materials such as zirconia, wax, PMMA, PEEK, cobalt-chrome alloy (soft metal).
Its processing adaptability is wide: zirconia crowns, bridges (16 units), zirconia posts and cores, zirconia implant bridges, zirconia veneers, large-angle implant bridges, implant openings, wax crowns, castable wax brackets, etc.
The layout process is visualized, each step has an operation guide, and the interaction is simple;XANGTECH XT-50 Milling Machine calculates CAM toolpaths extremely quickly, and the NC file generation time for a single tooth does not exceed 30 seconds. The default fixture supports 90-degree large-angle processing, which is convenient for the processing of the anterior tooth extension system.
Product Parameters

DENTAL MILLING MACHINE
Product Name	Dental Milling Machine
Keywords	XT-50 Milling Machine
Processing method	5 axis linkage dry milling
Spindle Speed	0-60000 RPM
Rotation axis working angle	A:360 degree B:+35 degree,-91degree
Machining Accuracy	0.01 mm
Machinable Materials	Zirconia/wax/pmma/peek/composite materials
Tools Magazine	10
Power	1.5kw
Rated working pressure	6.0-7.0bar
Voltage	220-230V
Layout CAM software	Open type

Detailed Photos
Power-off resume function: In case of emergencies, the processing will automatically continue after interruption to avoid duplication of work and improve processing efficiency
90-degree vertical cutting: convenient for front teeth milling, fine processing of tooth texture, providing customers with more perfect denturesLarge B-axis angle: The angle can reach +350, -910, and can process large-angle implants
Type clamp: Increase material utilization by 20%, saving material and eliminating waste
With high-precision probe, it can automatically calibrate the ABXYZ axis
Timely after-sales service,feedback within 1 hour
Customer Feedback
Packaging & Shipping
FAQ
Q: Are you a manufacturer, or a trading company?
A: We are an OEM/ODM manufacturing company.
Q: What's the delivery time?A: 3 working days.
Q: Can I get products as samples to test?A: We can offer free samples before you place orders. But you will bear the shipping cost.
Q: Can I print our logo or design on the products?A: We accept OEM or ODM, and we can print your logo according to your requirements.
Q: How can we guarantee quality?A: We strictly follow the ISO quality system. We strictly control and inspect the quality of raw zirconia powder. Each batch of powder is tested with each barrel as the testing unit to ensure that the quality of the finished zirconia blocks of different batches is stable. In addition, we have an independent laboratory to conduct strict tests on the zirconia powder and zirconia blocks to ensure the reliable quality of the zirconia blocks.
Q: Are there any discounts for large orders?
A: Yes, of course.

---
