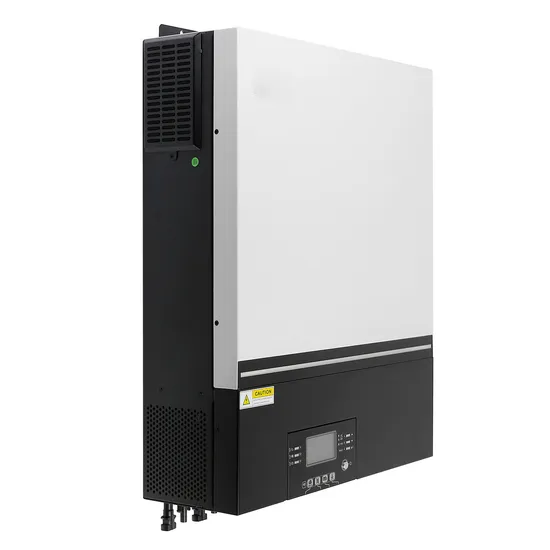

| Model | RSIN-8KW-48V-230V |
| Rated Power | 8KVA/8KW |
| Parallel Function | Support max 6 inverters in parallel |
| Input | |
| Input Voltage | 170-280VAC(For PCs ); 90-280VAC(For Home appliance) |
| Frequency | 50/60 Hz (Self Adapting) |
| Output | |
| Surging Power | 15000VA |
| Efficiency (Max) | 90% ~ 93% |
| Wave type | Pure Sine wave |
| Transfer time | 15ms(for PCs);20ms(For Home appliance) |
| No load power consuption | < 70W |
| DC voltage (Optional) | 12 VDC ± 5%, 100W |
| Battery | |
| Battery Voltage | 48VDC |
| Floating Charging Voltage | 54VDC |
| Over Charging Protection | 66VDC |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Max PV array power | 8000W(4000Wx2) |
| Max PV array Open-circuit Voltage | 250 VDC |
| MPPT Scale@Working current | 90VDC~450VDC |
| Max Solar ennergy charging current | 80A |
| Max AC charging current | 80A |
| Max Charging Current | 80A |
| Physical Features | |
| Dimension (mm) | 147.4 x 432.5 x 553.6 |
| Net Weight (kgs) | 18.4 |
| Communication Interface | USB / RS232 / RS485 / Wifi /Dry contact |
| Working Temperature | -10°C to 50°C |
| Storage Temperature | -15°C~ 60°C |
