Accurl German Standard Automatic CNC Sheet Metal Cutting Machine

Product Description

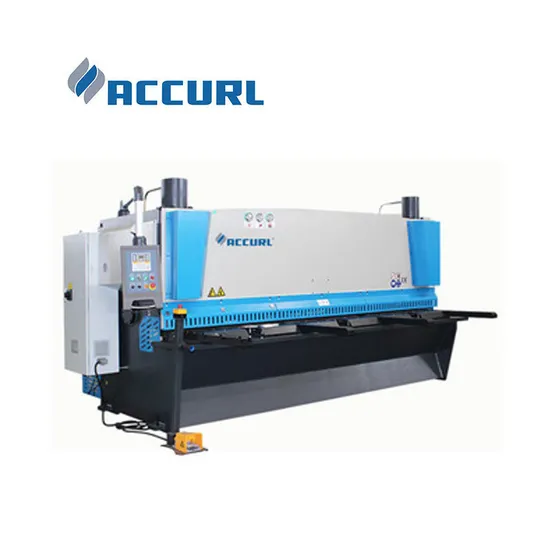

Accurl German Standard Automatic CNC Sheet Metal Cutting Machine
Product Description
HYDRAULIC GUILLOTINE SHEARS MASTER SERIES The ACCURL guillotine shear is the fruit of a project resulting in our bringing together 'Made in China' creativity, design and innovation with all the reliability of the best Chinese and European component range.The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts
and of extremely high quality.

CONFIGURATION	CNC Control System	DELEM DAC360T form Netherlands
	Electrical components	Schneider Electrical from French
	Main Motor	Siemens from Germany Brand
	Angle measurement Sensor	OPKON from Türkçe Brand
	Inverter Drive	Taiwan DELTA Servo Motor & Driving System
	PLC	Schneider Electrical from French
	Cutting Blades	FEILI from Taiwan Brand
	Hydraulic System	Bosch-Rexroth from Germany
	Hydraulic Pump	SUNNY from U.S.A Brand
	Tubing connector	EMB Brand from Germany
	Ball Screw/ Liner guide	HIWIN from TaiWan Brand

MACHINE DESIGN ACCURL Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.
Feature:
* The machine welding is made by welding plant and welding robots. * After the welding,we make stress relief process by vibration system. * After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.* Allreference surfaces and connection holes are machined. Detailed Photos
SHEARING PROCESS Perfect design in every aspect; By choosing the new and improved CNC Master MS8 guillotine, you will bring modern-day technology to your company with maximum
safety, high accuracy and unique ease of use.
Blade gap, cutting angle and cutting length are all adjusted based on material selection and thickness automatically. QUALITY ACCURL, known as one of the top worldwide manufacturers in the sheet metal industry,
proudly announces its latest shear model to the market,Variable Rake Hydraulic Guillotine.
The critical parts of the Accurl press brakes are manufactured in Germany.The carefully selected components come from long-term
partners. We rely on our quality and therefore give our guillotine a 3-year warranty. PNEUMATIC SHEET SUPPORT SYSTEM Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts. CNC CONTROL UNIT * 7" widescreen TFT Colour LCD display * Back / front gauge control
* Panel based housing
* Retract function
* Cutting angle and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system.
DAC360T CNC Control Unit ACCURL has chosen the very powerful new generation DELEM DAC360T offers an higher level of efficiency in programming and control of guillotine. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.
SPECIFICATION

Type	Cut Thickness mm	Cut length mm	Shear Angle Degree	SPM min-1	Back Gauge mm	Throat Depth mm	Main Motor kw	Net Weight kg
MS8-6×3200	6	3200	0.5°-1.5°	14	800	100	7.5	6500
MS8-6x4000	6	4000	0.5°-1.5°	12	800	100	7.5	8400
MS8-8×3200	8	3200	0.5°-1.5°	12	800	100	7.5	7400
MS8-8x4000	8	4000	0.5°-2.0°	11	800	100	11	9500
MS8-10×3200	10	3200	0.5°-2.0°	8	800	120	11	8500
MS8-10x4000	10	4000	0.5°-2.0°	8	800	120	11	11000
MS8-13×3200	13	3200	0.5°-2.0°	7	800	120	18.5	9200
MS8-13×4000	13	4000	0.5°-2.2°	6	800	130	18.5	12800
MS8-13×6000	13	6000	0.5°-2.4°	6	1000	150	18.5	26000
MS8-16×3200	16	3200	0.5°-2.5°	6	800	130	22	12000
MS8-16×4000	16	4000	0.5°-2.5°	6	1000	130	30	26500
MS8-16×6000	16	6000	0.5°-2.5°	6	1000	130	30	33000
MS8-16×8000	12	4000	0.5°-2.5°	5	1000	130	30	75500
