Wood Crushing Sawdust Making Machine Timber Bamboo Log Shredder Branch Wood Chipper

US$2,650.00 1 Piece (MOQ)

Basic Info.

Model NO.

NJ-ZZHC

Automatic Grade

Full-Automatic

Warranty

1 Year

Size

L3200xw1700xh2400

Weight

2460kg

Engine Speed

2500r/Min

Grain Production

5 Tons/H

Feed Throat Size

1700 * 450mm

Transport Package

Woodlayer

Trademark

NJ

Origin

China

HS Code

8479820090

Production Capacity

500

Packaging & Delivery

Package Size

240.00cm * 115.00cm * 180.00cm

Package Gross Weight

880.000kg

Product Description

Multi-functional Mobile branch grinder The performance of the multi-functional tree branch grinder is directly an important indicator to measure the level of modernization and enterprise progress. The multi-functional tree branch mills of our factory are divided into large, medium and small models, which have the advantages of advanced technology, reasonable design, simple operation and convenient maintenance. This equipment can directly crush waste wood, branches and other materials into sawdust or wood chips to make puree pulp for production of paper. In the paper industry, raw plant fibers such as wood, bamboo and reed and recycled fibers such as waste paper are generally used as raw materials. More important, with the need for environmental protection, and a steady rise in the economy, the recycling of waste wood has successfully replaced non-renewable resources such as plastics, steel, and non-ferrous metals. It is an important industry that can achieve sustainable development and a circular economy and has strong vitality.

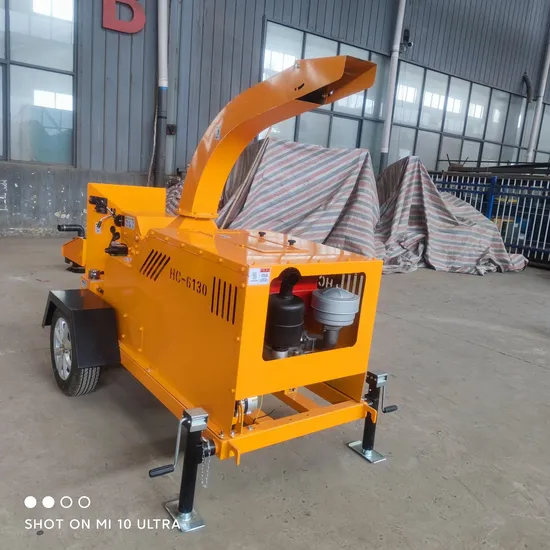

Model	6130 Branch Crusher	6145 Branch Crusher
Motor	32hp Diesel Engine/22kw Electric Motor	102hp Diesel Engine/55kw Electric Motor
Size	230013001800mm	320017002400mm
Starting Method	Electric Starting
Speed	2600r/min	2500r/min
Quantity of Blade	4pcs Movable Blade + 1pcs Fixed Blade
Diameter of Feeding Roller	280mm	500mm
Motive Power of Feeding	Hydraulic
Volume of Hydraulic Oil Tank	25L
Size of Feeding Port	300*200mm	450*380mm
Motor Power	600w	800w
Battery	12v 105ah	24v 105ah
Tyre	165/70R13	215/75R15

Electric/Diesel Wood Grinder Branch Shredder Wood Slicer
The wood crusher is a new type of ultra-fine wood powder equipment newly developed using high-tech advanced technology. The feed port of the machine adopts self-priming feeding to ensure safe production. It is beautiful in appearance, sturdy and durable, has high output, and is more than 50% more efficient than traditional wood flour mills. The wood crusher is suitable for crushing the following materials: bamboo wood flour, fruit shells, Chinese herbal medicines, bark, leaves, and wheat bran. and other multiple types of wood.

This Wood chipper is used for crushing wood,Agro waste, tree branch,tree bark, tree leaves,roots, wood logs and scraps into small chips
1. Application: It is widely used in Forestry ,Greening,road,garden, park,golf course,landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .
2.Raw meterial: All kinds of tree branches,tree leaves,wood logs,agro waste,and so on.
3.Final production:The final chips can be used for organic fertilizer,flower potting soil,mushroom cultivation base,animal feed,paper-making,wood charcoal making,shaving board,HDF board,etc.The size of final chips are adjustable .
4.Power : Motor ,Diesel engine ,Mobile ,At option .
5.Machine Color : As per client requirement .

Number of blades	4 moving blades and 1 st
Blade length	230mm
Diameter of feeding pressure roller	500mm
Feeding pressure roller power	hydraulic motor
Diesel tank volume	120L
Hydraulic oil tank volume	25L
Feeding gear	three gear manual control for forward one reverse one stop
Feed throat size	1700 * 450mm
Tyre size	215/75r15
Wheel size	15 inch aluminum alloy wheel
Generator power	800w
Warranty of core components	1 Year
Core Components	Motor, Engine
Battery specifications	24V 1 05aH
Complete machine power off switch	300A power switch
Grain production	5 tons/hour
Overall dimensions (L x W x H)	L3800x W1700x H2400mm
Cutter roll diameter	500mm
Startup mode	Electric starting
Engine speed	2500r/min
