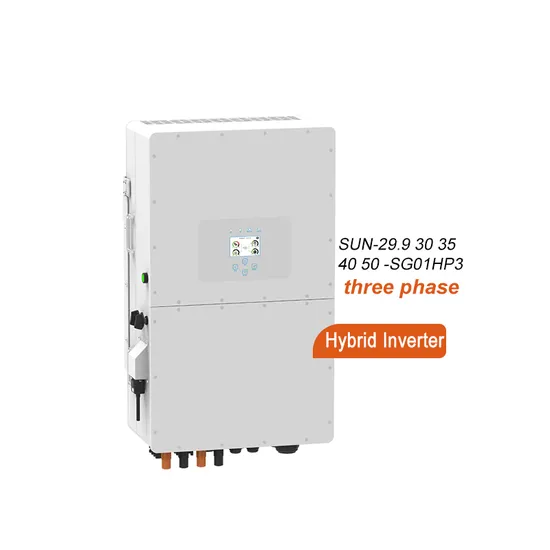

Deye High Voltage Sun-50K-Sg01HP3-EU 20kw 30kwthree Phase Hybrid Inverter 50kw Solar Inverter

Product Description

Product Description Model NO.
SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 Brand Deye Type DC/AC Inverters Power Source Solar Power Circuit Topologies Transformerless / Transformerless Nature of Wave String Sine Wave Inverter Cooling Concept Smart Cooling Topology Transformerless Installation Style Wall-Mounted Display LCD1602 Ingress Protection IP65 Transport Package Carton with Pallets Specification 527*894*294 Trademark Deye Origin Jiangsu China HS Code 8504403090 Product Parameters

Model	SUN-29.9K-SG01HP3-EU	SUN-30K-SG01HP3-EU	SUN-40K-SG01HP3-EU	SUN-50K-SG01HP3-EU
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	150~800V
Max. Charging Current (A)	50A+50A
Max. Discharging Current (A)	50A+50A
Number of battery input	2
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	32500W	39000W	52000W	65000W
Max. DC Input Voltage (V)	1000V
Start-up Voltage (V)	150V
MPPT Range (V)	200V-850V
Full Load DC Voltage Range (V)	450-850	360-850	360-850	450-850
Rated DC Input Voltage (V)	600
PV Input Current (A)	36A+36A	36A+36A+36A	36A+36A+36A+36A
Max. PV ISC (A)	55A+55A	55A+55A+55A	55A+55A+55A+55A
No. of MPP Trackers	2	3	4
No. of Strings per MPP Tracker	2
AC Output Data
Rated AC Output and UPS Power (W)	25000W	3000W	40000W	50000W
Max. AC Output Power (W)	27500W	33000W	44000W	55000W
Peak Power (off grid)	1.5 times of rated power, 10 S
AC Output Rated Current (A)	38	45.6	60.8	75.8
Max. AC Current (A)	50	60	70	83.3
Max. Continuous AC Passthrough (A)	150A
Output Frequency and Voltage	50/60Hz;3L/N/PE 220/380Vac,230/400Vac
Grid Type	Three Phase
DC injection current (mA)	<0.5% 1n
Certifications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (ºC)	-40~60ºC, >45ºC Derating
Cooling	Smart cooling
Noise (dB)	<45 dB
Communication with BMS	RS485; CAN
Weight (kg)	80kg
Size (mm)	560.5W×837H×319D
Protection Degree	IP65
Installation Style	Wall-mounted

Company Profile
FAQ Are you a factory or a trading company?
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.
Can we visit your factory?
Welcome to visit our factory to know more of each other.We will pick you up from airport or train port.

---
