Mini Lab Roving Frame Of Mini Spinning System With 1 Spindle

Product Description

Product Description

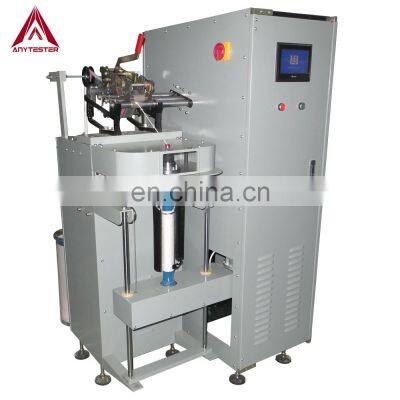

Product DescriptionAT205 Mini Lab Speed Frame is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to make roving from sliver. And in the same time, insert the twist into the roving and then winding the twisting roving on bobbin. Features1.AT205 Mini lab Speed Frame adopts touch screen and PLC control.2. Imported frequency converter of high efficiency.3.Mini type machine, save researching cost and easy to operate and maintain.4.AT205 Mini lab Speed Frame Can be used for cotton fiber or wool fiber (alternative) with different machine parts.Specification ModelAT205Mini Lab Speed FrameSpindle number1Fiber typeCotton or wool (alternative)Twisting range50-250 twist/mDrafting rangeApprox. 2~50Fiber length22 ~ 42 mm or customizedOutput capacity0.25 ~ 1 kg per hour or customizedRoller diameterΦ28/25/28mmOutput speedApprox. 12m/minSpindle flyer speed600rpmCan sizeΦ250*550mmPower220V/380V, 50/60Hz, 700WDimension1000*800*1600mm

---
