35t Movable Rubber Tyred Gantry Crane Lifting Equipment with CE Hot Sale Ljmj-35

Product Description

Product Description

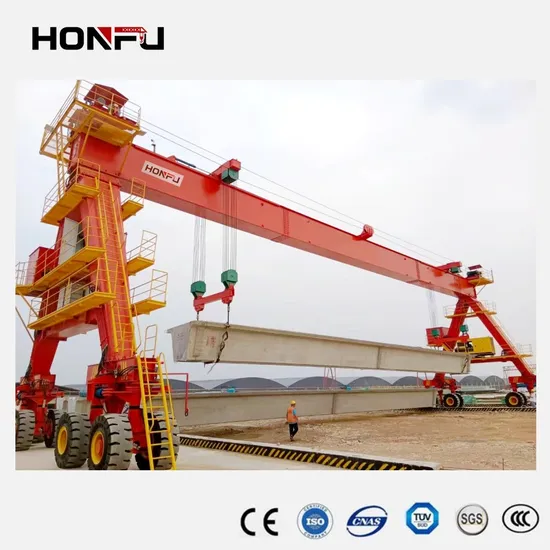

RUBBER TYRED GANTRY CRANE
The rubber-Tired gantry crane is a kind of special equipment, mainly used for lifting, transferring and loading the prefabricated concrete box girder in the concrete prefabricated beam field. It can also be used for the hoisting and moving of the box girder reinforcement skeleton and the inner mold of the prefabricated plant. The rubber-Tired crane can realize a variety of modes such as straight travel, diagonal travel, horizontal travel, in-situ rotation, Ackerman steering, etc.
It has mobility, flexibility, adaptability, high work efficiency, small size occupation area and do not need to lay the rail which are particularly suitable for beam factories with horizontal layout. The rubber Tired gantry crane can work independently or collaborative work by two units.
The crane mainly consists of main beam, support leg, hoisting mechanism, tire walking and braking system, steering mechanism, power system, electrical system, hydraulic system, hydraulic transmission system, cab, control system, safety device, etc.
Technical Parameters

Lifting capacity			t	5	10	16/3.2	20/5	32/8	40/10	50/10	75/20
Span			m	18,22,26.30.35
Lifting height		Main hook	m	10-12
		Aux hook	m	No		10.6-13.2
Workig duty				A5(intermedicate)
Speed	Hoisting	Main hook	m/min	12.3	14.6	15.3	15	13.2	9.2	5.9	6.25
		Aux hook		No		22	19	17	14.8	13.2	9.28
	Carb traveling			44	43.7	44.7	44.7	38.6	37.6	36	38.9
	Trolley traveling			32-37	36.65-37.5	30-35	32.9-34.5	52.53-53.25	52.53-53.25	38.6-45	32.6-38.5
Jnstalled power				36.5-45.5	47-56	68.3-76.3	78.3-87.3	129.5-145.5	129.5-145.5	143-159	186-201
Max.wheel load			KN	217-289	247-354	180-236	211-270	275-369	341-435	392-483	314-361
Steel track recommonded				P43	QU70			QU80
Power source				380V-50HZ,3Phase,AC or as your requirement

Company Profile
COMPANY BRIEF INTRODUCTION: We are a professional manufacturer of all kinds of lifting equipment. Our company is located in Yangliu Town, the lifting hometown of Yangliu, at the foot of Mount Tai which is the world-famous top five mountains, with a registered capital of 51.7 million yuan.
We are mainly engaged in designing, manufacturing, installation, transformation and maintenance of various general bridge cranes, gantry cranes, metallurgical cranes, explosion-proof electric hoists, wire rope electric hoists, European cranes and other products.
We have strong technical force. The professional technicians with college or technical secondary school education account for 80% of the total number of employees. The high quality and technical level of the employees effectively ensure the rationality of the product technical structure, the progressiveness of the processing technology, and the technical performance and reliability of the products.
We have a lifting machinery research institute, equipped with advanced computer-aided design system and lifting equipment laboratory. We mainly cooperate with Beijing Lifting Machinery Research Institute and Shandong University to focus on the research, development and design of new crane products. Among them, the European standard crane has mature technology and reliable quality, and our products are exported overseas. At the same time, based on the advanced design theory and manufacturing technology of cranes at home and abroad, the original crane products and equipment have been fully redesigned. The new products have reached the same quality as international famous brands. The technological innovation has reduced the manufacturing cost and increased the market share.
Since the establishment, the output value, profits and taxes of our company have increased significantly. Our products were sold well in more than 30 provinces and cities across the country, and have been exported to more than a dozen countries such as Brazil, Iran, Pakistan, Nigeria, Tanzania and other African countries, which have been highly praised by users at home and abroad.
Exhibition Pictures

Customer Site Pictures

Packing & Delivery
Certificates & Honors

1. How can you guarantee the quality?
We are one of the TOP 10 manufacturers in China. We have more than 10 years experiences in domestic and overseas market. Reputation is the foundation we depends on. We use high quality spare parts especially electric device to ensur customer's experience and set up longüime trust in us. All product take final inspection before shipment.
2. What's your main market?
Domestic Market(60.00%),Southeast Asia(15.00%),South Asia(6.00%).Northem Europe(5.00%),Mid East(5.00%), Westerm Europe(4.00%).Central America(3.00%),Africa(2.00%).
3. Is engineer commissioning service available?
Yes, it's avallable. Differenct project, ditferent solution. We need further discuss after order is confirmed.
4. What is your sales terms and payment conditions?
Accepted Sales Terms: EXW, FOB,CFR,CIF.
Accepted Payment Currency USD. EUR.
Accepted Payment Type: T/T.L/C,D/P D/A,Credit Card.
5. Can the cranes be customized?
Yes,all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.For example Lifting capacity, Spanlength, Lifting height.

---
