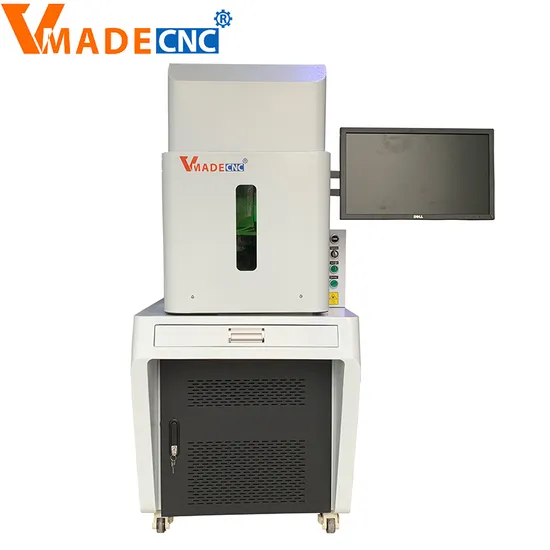

50W 100W Fiber Autofocus CNC Fiber Laser Marking /Engraving/Engraver/Marker /Cutting/Cutter/ Machine for Metal/ Cup/Jewelry /Plastic/ Laser Marking Machine

Product Description

Machine Description Fiber Laser Marking Machine suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock,Auto Parts, Plastic& Paper Materials,The Electron, Hardware which with high request for depth, smooth,accuracy such as horologe, Mould, bitmap marking etc.
Technical Parameter List

Laser Power	Raycus 20W	Raycus 30W	Raycus 50W	Raycus 100W
Pulsed fiber laser	P20QB	P30QB	P50QB	P100Q
Wavelength(nm)	1060~1085	1060~1085	1060~1085	1060~1085
Polarization	Random	Random	Random	Random
Optical isolator	Yes	Yes	Yes	Yes
Nominal average output power (W)	≥20	≥30	≥50	≥100
Single pulse energy (mJ)	1@20kHz	1@20kHz	1@20~50kHz	1@20~100kHz
Beam quality(M2 )	<1.5	<1.5	<1.5	≤1.6
Beam Diameter(mm)	6~8	6~8	6~8	6~8
Pulse duration(ns)	<120@20kHz	<120@30kHz	90-150@50kHz	50~130@100kHz
Pulse repetition rate(KHz)	20 - 60	30 - 60	50-100	20 - 200
Output Power Tunability(%)	10-100	10-100	10-100	10-100
Output Fiber Cable length(m)	2.0	2.0	2.0	2.0
Working voltage(VDC)	24±1	24±1	24±1	24±1
Power consumption(W)	200@20ºC	300@20ºC	340@20ºC	450@20ºC
Cooling	Forced Air Cooled	Forced Air Cooled	Forced Air Cooled	Forced Air Cooled
Dimension W×D×H(mm)	215×286×95	215×286×95	260×391×120	396×360×123
Operating temperature(ºC)	0~40	0~40	0~40	0~40
Store temperature(ºC)	-20~60	-20~60	-20~60	-20~60
Operating Humidity(%)	≤80%	≤80%	≤80%	≤80%
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency, etc.
Graphic Format Supported	BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, ETC.

Sample show laser marking machine are used to mark logo, numbers, code, characters, letters and graphs on different kinds materials, such as stainless steel, aluminum, plastic, wood, silber, gold and so on. As fiber laser beam is very thin and powerful, the machine can do non-contact high accuracy marking which will not destroy the surface of objects.
This machine is widely applided in electronics, apparatus and meters, instrument, hardware tools, automobile, machanical parts, daily necessities, jewelry rings, food packages etc.VMADECNC Factory&Packge
Industry 4.0, VMADE CNC machine co.,ltd is committed to providing basic equipment and personalized intelligent solutions for future industrial production, providing customers with stable and efficient intelligent equipment experience and supply sales to production to after-sales services. Help companies improve productivity and bring more profits.
Customer Visit
FAQ
Q: How can I choose the most suitable machine? A: In order to recommend you the most suitable machine model, please let us know the following details: 1.What is your material? 2.The size of material? 3.The thickness of material?
Q: This is the first time I use this kind of machine, is it easy to operate? A: A manual is already included in our product packaging,we also provide 24/7 telephone support to our customers and offer a life time warranty.Jinan Vmade as the largest laser manufacturing factory, we have free installation for optical fiber laser machine in addition to the operating instructions door-to-door free installation services we also provide professional engineers, to provide you for free door-to-door training instruction, so please be assured use
Q: Why choose agent and OEM? A: The minimum order is 1 set machine, if you order more one time, the price will be better,Jinan Vmade focus on laser research and development production of 14 years,have 31 national patents, It is the largest fiber laser cutting machine, engraving machine and marking machine manufacture in northen of China,we have advanced technology, quality certification CE, ISO 9001, and FDA. products are exported to more than 100 countries and areas, as a focus on laser industry manufacturers, not only can give you a good quality assurance, but also can offer you a good price.

---
