Rhd I′ Veco 12000 Liters 12ton Rescue Fire Truck Water Foam Tank Fire Fighting Engine

Product Description

HUEBEI FUYA VEHICLE CO.,LTD

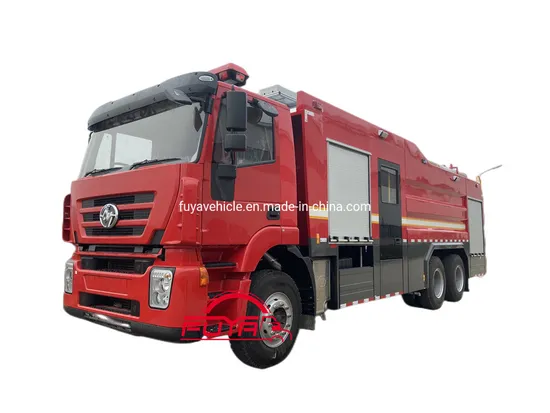

I. Details of Heavy 15TON 15000 LITERS HONGYAN I-VECO fire fighting truck with lifting lamp
Function:
Fire fighting truck (also called fire water truck, fire fighting tanker, water tank fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, fire service truck, fire hydrant and fire water tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into many types:
1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are JAPAN fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent, there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.
II. Technical data of Heavy 15TON 15000 LITERS HONGYAN I-VECO fire fighting truck with lifting lamp

TECHNICAL SPECIFICATION
Main specification		Chassis brand		I-VECO
		Chassis model		CQ1254HMG
		Overall dimension(L*W*H)		10700x2500x3800mm
		Water tank volume		9,000 LITRES
		Foam tank volume		1,000 LITRES
		Cabin		crew cabin, with air conditioner ,electronic windows, USB,
		Total mass		25,000 kg
Chassis		Drive modle		6X4 right hand drive
		Wheelbase		5025+1350mm
		Front axle loading		6000 kg
		Rear axle loading		7000 kg*2, in total 14000kg
		Brake		air brake
		Front/rear suspension		1335/1900 mm
		Approach/departure angle		26/15 (°)
		Spring number		8/12
		Tyre size & number		11.00R20, with one spare tyre
		Max speed		90km/h
Engine		Model		C9.290(F2CE0681D*B053)
		Engine Type		six-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling
		Horse power		290hp
		Displacement		8709ml
		Emission		Euro 3
		Max Torque		1100N·m
TANK SPECIFICATION
Fire pump		Model		/	CB40.10/7.50
		Low Pressure working		Bar	10
				L/M	3000
		High Pressure working		Bar	40
				L/M	350
		Max suction height		m	7
		Rated speed		r/min	3000
		Time of drawing water (s)		s	≤35
		Input diameter		mm	125
		Outlet diameter		mm	4xΦ65
Fire monitor		Model		/	PL48
		Fire fighting nozzle range		Water (m)	≥65
				Foam (m)	≥50
		Flux		L/M	2400
		Rated Working pressure		Mpa	0.7-1.2
		Rotation angle		(°)	360
Standard configuration		1. Have alarm rotating light and which is mounted on top of the cabin 2. Have two side light per side ( four in each sides plus rear pump working lights ) , 3. Have 2 ladders on rear left and right side of the tank 4. Have manhole 5. Have 2x60m high pressure hose reel . 6. All piping will be manufactured from stainless steel material 7. Have CB10/60 Centrifugal pump and PL48 manual monitor 8. Have standard inlets and discharge couplings , the couplings are all BS model with blind clap. 9. Have telescopic lighting, powered 220V by diesel generator 10. Have standard fire equipments as below list

III. Fire truck details
IV. FIRE TRUCK ACCESSORIES
V. PRODUCT SHIPPING (RORO OR BULK SHIP)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
VI. COMPANY INFO
Hubei Fuya vehicle Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. LPG tank/LPG bobtatil truck/ LPG trailer
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck/Fuel dispenser truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Garbage truck/Compactor garbage truck/ hook lift garbage truck/swing arm garbage truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck/vacuum jetting truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck/Manlift ruck
11. Sweeper truck
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / aluminum trailer, etc. )
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. Can offer the OEM, ODM service.
5. The heart of the service, rational design
After-sale services:
1. One year quality warranty for key parts such as axles, engine, transmission, tracking service is lifelong.
2. Overseas service center to ensure efficiency after-sales service.
3. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
4. Chassis:Please find the local nearest service station for repair or maintenance ,you also can contact us with 24-hour hotline or whatsapp or email.
5. Spare parts: Superstructure spare parts can be sent immediately when the problem occurrs .
Transaction records:
1.58 sets of m-ilitary water trucks for national defense2. Dump trucks in support of the United Nations3. Fuel tank trucks exported to Sudan4.78 sets of water truck exported to Nigeria5. Dump trucks exported to the Ivory Coast, Kazakhstan6.108sets of trucks exported to Libya7.36 sets of dump trucks exported to North America8.218 sets of garbage trucks exported to West Africa9.60sets of water trucks exported to Congo10. Garbage trucks exported to Vietnam11.98 sets of dump trucks exported to Ghana
Welcome to contact with us for more info. We will offer you the best truck as we can .

---
