Cheapest Good Quality Automatic CNC Vertical Turning Lathe Vertical CNC Lathe

Product Description

Cheapest good quality automatic cnc vertical turning lathe vertical cnc lathe


1.Product Description

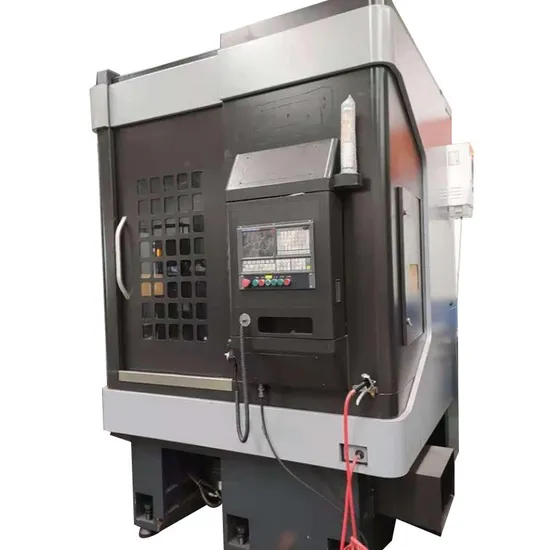

This machine is an automatic vertical cnc lath for machining the inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. It is especially suitable for drums, clutch pressure plates ,flywheels and alloy wheels repairing.

2.Main Features

1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque,
heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing
6. Automatic centralized lubrication with full sufficiency and reliability.

3.Specification

Specification	UNIT	VTC450	VTC60	VTC70
Max.Swing diameter	mm	500	650	700
Spindle speed	rpm	100~1500	100~1000	100~1000
Cutting feed speed	mm/min	0.1~1000	0.1~1000	0.1~1000
Vertical moving distance of tool holder	mm	550	600	700
Tool rest horizontal moving distance	mm	400	450	700
Longitudinal fast moving speed	mm/min	16000	16000	16000
Transverse fast moving speed	mm/min	16000	16000	16000
Tool holder form		horizontal	horizontal	horizontal
Diameter of hydraulic chuck	mm	400/500	400/500	400/500/630
Main motor power	Kw	15	18.5	22
positioning accuracy	mm	±0.008	±0.008	±0.008
Re -positioning accuracy	mm	±0.004	±0.004	±0.004
Machine size	mm	2000x1900x3030	2000x1900x3030	2050x1800x3200

4.Application
This series of CNC Vertical Lathe can process a variety of short-axis, disc-type parts, can be used to turn a variety of threads, arcs, and the inner and outer surfaces, end faces, grooves of the rotating body. Suitable for large batch size, high processing precision and high dimensional consistency. This series of machine tools is widely used in the domestic and international automotive industry, and is a machine tool with higher precision and high efficiency.

5.Packaging Details


Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

6.Our services

Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
7.Company information
Our company has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.

8.FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
