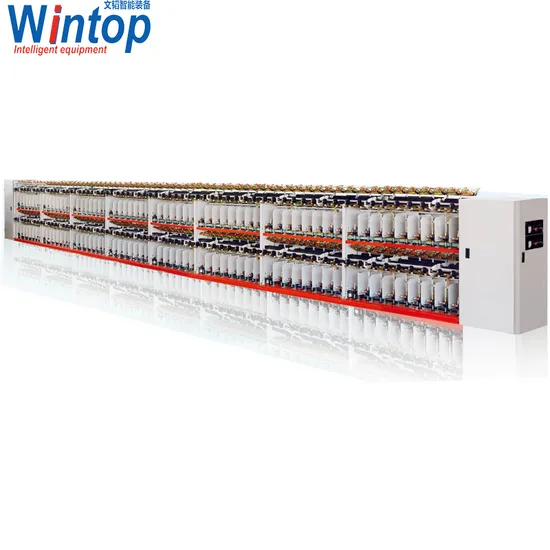

| specifications for WT310G-H/WT310G TFO twister |
| S/N | Item | specifications | remarks |
| 1 | sheet metal parts | thickness of main parts 4MM | |
| 2 | package cradle | spring type | |
| 3 | friction drum | bakelite | |
| 4 | overfeed roller | spring hold type | |
| 5 | traverse bar | stainless steel12.7 square tube | |
| 6 | main shaft | steel#45,precisely adjusted | |
| 7 | tension plate | thickness 3MM | |
| 8 | tensor | black sectional type | |
| 9 | guide roller | bearing typ | |
| 10 | seperator | reinforced plastic | |
| 11 | outer magnetic disc,holder | Al diescated with pressure,surface coating | |
| 12 | bearing for spindle | NMB | made in Japan |
| 13 | spindle | zhongbao brand | rifa group |
| 14 | bolster | ultra silent type | |
| 15 | bearing for tension pulley | NMB | made in Japan |
| 16 | belt | Habasit (Switzerland) | made in Switzerland |
| 17 | electronic system | CHINT brand | |
| 18 | motor | Jiangtian brand | |
| 19 | worm gear reducer | jie brand | |
| 20 | gear&grooved cam | precisely processing | |
| 21 | motor pulley | high precision balance processing | |
| 22 | stationary disc | Al diecasted with pressure,precisely processing | |
| 23 | counter meter | display:length,speed,TPM,RPM | |
