0-190ohm/240-33ohm/4-20mA/0-5V Analog Input 52mm Water/Fuel/Oil Level/Temperature/Pressure Gauge with Red Pointer White/Black Dial

Product Description

0-190ohm or 240-33ohm 52mm Round Water/Fuel/Oil Tank Level Gauge/level Meter, fuel gauge, water temperature gauge, oil pressure gauge Product Description A 52mm fuel level gauge is a compact instrument designed to measure and display the fuel level in a tank.
Typically featuring a clear, easy-to-read dial or digital display, it provides real-time feedback on fuel levels.
The gauge often has a sender unit that communicates with the gauge to deliver accurate readings, making it ideal for automotive, marine, or industrial applications.
Its standard size allows for straightforward installation in dashboards or control panels.
Product Parameters

Indicating range	Eempty~Full, 0-100%, actual gallon
Input signal	0-190Ω or 240-33Ω, 4-20mA, 0-5V , etc.
Installation diameter	52mm (2")
Dial color	white, black

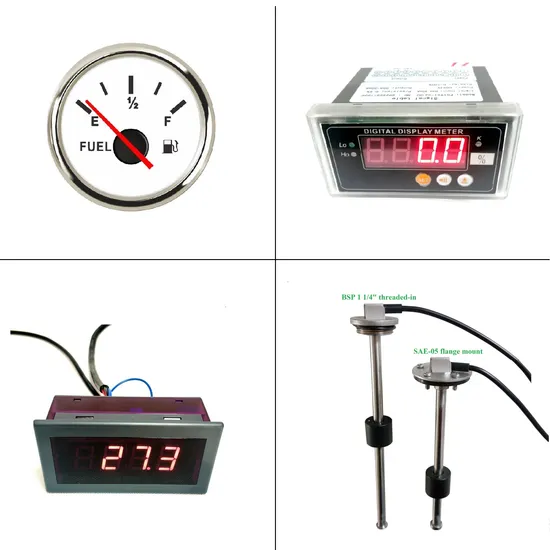

Detailed Photos
Installation Instructions Installing a 52mm fuel level gauge involves a few key steps. Here's a general guide to help you through the process:
Tools and Materials Needed: 52mm fuel level gauge Fuel sender unit (if not included) Wires (as needed) Connectors and terminals Drill and hole saw (for mounting) Screwdriver Electrical tape Multimeter (optional, for testing) Installation Steps: Choose a Location:
Select a suitable spot on your dashboard or panel for the gauge. Ensure it's visible and accessible. Prepare the Mounting Hole:
Use a 52mm hole saw to create an opening for the gauge. Be careful to avoid any wiring or components behind the panel. Connect the Sender Unit:
If your gauge doesn't have a built-in sender, you'll need to install one in the fuel tank. Follow the manufacturer's instructions for the sender's installation. Typically, this involves securing the sender in place and connecting it to the fuel tank's level sensor. Wiring:
Connect the sender unit to the gauge. This usually involves three wires: Power (positive): Connect to a 12V power source. Ground (negative): Connect to the vehicle's ground. Signal wire: Connect the sender's output wire to the gauge's signal input. Use connectors and terminals as necessary, ensuring all connections are secure. Electrical tape can be used to insulate exposed wires. Mount the Gauge:
Insert the gauge into the prepared hole and secure it with the included mounting hardware. Testing:
Turn on the vehicle or power source to test the gauge. Check for accurate readings based on the fuel level in the tank. If it's not functioning correctly, double-check your wiring and connections. Final Checks:
Ensure all connections are secure and that there are no loose wires. Reassemble any panels or covers you may have removed during the installation. Packaging & Shipping

---
