Magnetic Contacts Switches Door Contacts

US$0.70-1.50 100 Pieces (MOQ)

Basic Info.

Model NO.

BS-2011

Certification

CE, ISO, RoHS, UL

Maximum Switching Voltage

100

Maximum Switching Current

0.5

Color

White, Brown, Grey

Reed Form

N/O,N/C,Spdt

Loop Type

Closed/Open/Closed&Open

Closed Gap[Inch(mm)]

1 (25)

Transport Package

Box

Specification

Plastic

Trademark

Sentek

Origin

Ningbo China

HS Code

8531901000

Production Capacity

200000/Month

Product Description

Specification:

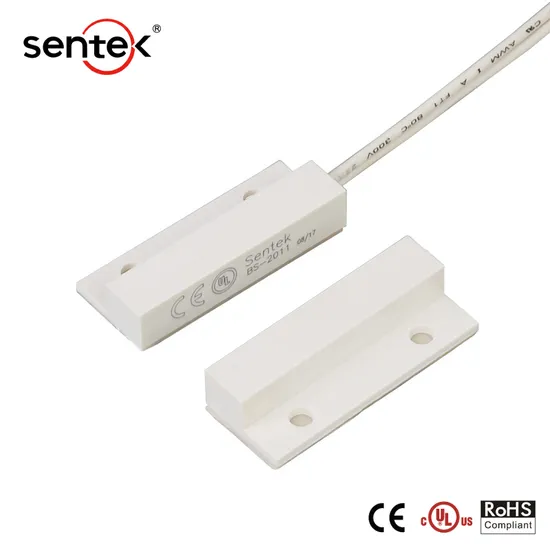

Surface Mounted Magnetic Contacts Switches Door Contacts
Product Features:
* Mini Stick-on contact with flange
* Side leads with #22AWG 18" length
* Adhesive and screw mount included
* Special leads on request
* Switches or magnets available seperately
* Resistor, Diode and Supervisory Loop available on request
* Colors: White, Brown, Grey
* Without Flange (BS-2051)
Order Information:

Part Number	Loop Type	Reed Form	Closed Gap [Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage(VDC/VAC)	Maximum Switching Current(A)
BS-2011	Closed	N/O	1 (25)	0.150	10	100	0.5
BS-2011MN2550	Closed	N/O	1 (25)	0.150	10	100	0.5
BS-2011WG	Closed	N/O	11/4 (31)	0.150	10	100	0.5
BS-2011A	Open	N/C	1(24)	0.150	3	30	0.2
BS-2011C	Closed & Open	SPDT	1 (24)	0.150	3	30	0.2
