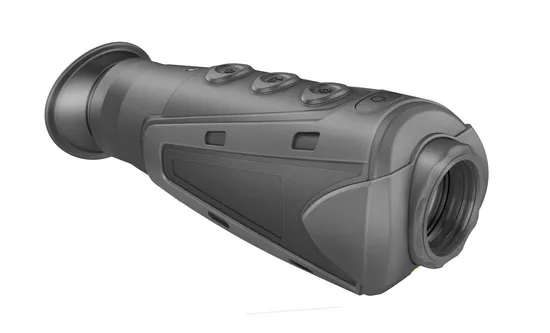

WiFi Thermal Imaging Hunting Monocular

US$1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SHR-PIR19L
Type
Monocular
Sensor
Vox
HDMI Format
480P
Horizontal Resolution
N/a
Kind
Manual Focus Lens
Certification
CE, FCC, RoHS, ISO9001: 2000
Feature
Waterproof / Weatherproof, Mini Size
Effective Distance
≧30m
Sensor Size
N/a
Remote Control
Without Remote Control
Transport Package
Carton Cases
Trademark
SHEENRUN
Origin
Jinan, China
Production Capacity
1000 Units/Month

Product Description


Features
Image record & Wi-Fi image transfer
The upgraded image record and Wi-Fi image transfer capabilities enable MR19 keep the most unforgettable or most important instant into eternity and share the saved images easily Lightweight and pocket size
With its small pocket size and agronomical design, the MR19 weights only 350g, which allows you to scan vast areas for long period of time without arm fatigue Easy Operation
With straightforward on-hand operation using only four buttons, the MR19 assists your vision without adding complexity High-tech LCOS Display
The latest in next generation LCD display LCOS offers superior image quality Technical data
Monitoring distance
Object Human(1.8m×0.5m) Vehicle(2.3 m×2.3 m)
Detection distance 500m 1400m
Lens
Focus 19mm, F1.0
Focusing Fixed focus, athermalizing
Screen Colorful LCOS
Viewfinder Monocular, diopter adjustable
Detector
Detector type 400x300 @25um
Spectral range 8~14um
Frame 25Hz/50Hz
Digital zoom 2x, 4x
Tracing Hot spot tracing
Color pelette Black hot, white hot, red hot
Image format JPG
Wi-Fi Can read photo with Wi-Fi
Configuration Laser point
Interface
USB Charging, data transfer
Video output Analog video output, PAL/NTSC alternative
Environmental indicators
Working temp -10ºC~+60ºC
Storage temp -30ºC~+60ºC
Humidity 10%~95%
Shock 25G, IEC68-2-29, GB
Encapsulation IP66
Drop test 1m drop
Power supply
Battery Internal Li-ion battery
Working time ≥5h
Adapter Standard USB power adapter, max 10w
Physical features
Weight 350g
Size 160mm x 67mm x 62mm

Effect demo
Package
