Profiled Personalized Cutting 1325 CNC Router Engraving Machine for PVC Cutting

Product Description

Profiled Personalized Cutting 1325 CNC Router Engraving Machine for PVC Cutting05
Product Description

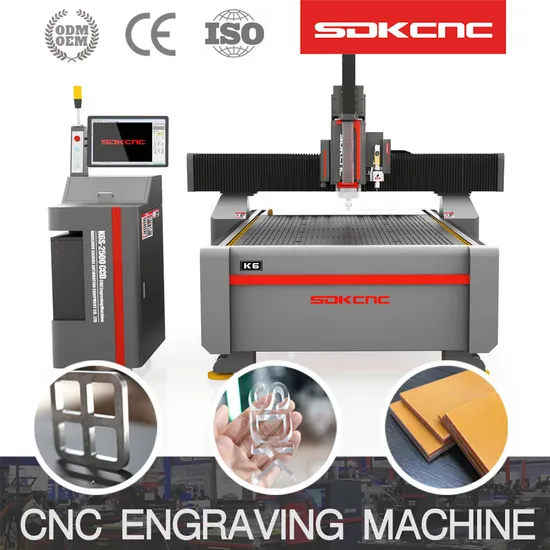

Δ K6S-2500 CCD is a Heavy-duty engraving & carving Machine (mini-character engraving machine ) independently developed and produced by SDKCNC. It can be used for hi-speed engraving and milling of soft metals and plates processing.
Δ Its robust architecture,forged from Heavy duty steel structure (Stress Relief Treatment),undergoes a thorough time stress relief process. The whole machine adopts AC servo drive,Y-axis dual motor drive,so it's running stably and reliably.Adopts precision milling helical gear rack, straight guide rail,silent screw rod.
Δ It widely applicable to the engraving and milling of copper,aluminum,stone,acrylic,wood,aluminum-plastic ,insulating boards,epoxy resin plate,carbon fiber composited materials and the processing of various plates and soft metals.
Δ Its standard CCD edge patrol component ensures precise contouring without the hassle of white edge processing,providing immaculate finishes.
Δ With standard configuration of hi-efficiency electric oscillating knife and the universal tool holder .It can be equipped with pneumatic oscillating knives,crossing wheel tool,V-cut tool ,kiss cut tool and function of felt roller feeding .It can fastly finish steps of full cutting ,kiss cutting ,perforating ,creasing ,rounter milling ,contour recognition cutting and other processes.
01 BED STRUCTURE
Welded bed with Thick-walled square tube in stress aging relief
All planes and installation holes are precision machined by gantry milling
02 TRANSMISSION
Transmission:X/Y-axis with helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
The whole machine adopts AC servo drive,Y-axis dual motor drive,
04 SPINDLE
This facility adopts high pulling torque spindle ,Standard water cooling
spindle power 5.5 kw,speed from 1-24000RPM
Interchangeable air-cooled spindle
05 WORKING TABLE
phenolic resin suction clip intergrated table with T slot
standard 5.5kw aluminum alloy vacuum pump
06 DUST COLLECTION SYSTEM(OPTIONAL)
The optional accessories has the water tank,water spirit system etc .
07 UNIVERSAL TOOL HOLDER
The universal knife holder supports a wide range of knives, such as electric oscillating knife, pneumatic oscillating knife, offer-centered drag knife, kiss cut knife, creasing wheel knife, etc....
08 CCD SYSTEM
High resolution CCD camera element positioning, industrial edge cruising motion control system, can automatically correct the offset of the plate. And it can intelligently obtain the edge, one-click without white edge cutting.
Product Parameters

Technical Parameter
Working Area	1300 x 2500 mm
Repeat position accuracy	±0.01 mm
Spindle Power	5.5Kw (1-24000 RPM)
Spindle Type	water-cooling
Spindle	Single-spindle
Control system	Industrial 5-Axis Control System
Dust Collecter	Optional
Drive motor	AC Servo Motor + Reducer
CCD	High Resolution CCD System
Type Name	K6S-2500 CCD
Working Table	Phenolic resin suction clip intergrated table
Vacuum Pump	5.5KW
Other characteristics	Universal tool holder, flexible material cutting
Support for cutting tools	Support Tool Types Electric Oscillating Knife, Pneumatic Oscillating Knife, Offer-Centered Drag Knife, Kiss Cutter, Creasing Wheel Knife

Application Industry
Δ It widely used for high speed cutting and engraving of Acrylic,PVC,wood,aluminum plates,insulting boards,ABS board,aluminum-plastic plates,thick foam,PVC,MDF board ,expansion sheet.It can also carve and cut various soft metals, such as copper, aluminum, etc
Δ It widely used for abnormity edges and complex patterns processing ,such as advertisement logo,sliding door packaging,furniture,showcase,architectural models,etc
Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.

---
