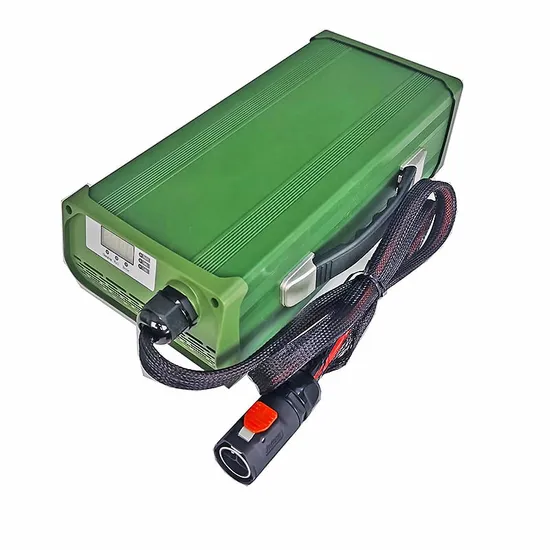

DC 72V 73V 15A 1200W Low Temperature Charger for 20s 60V 64V LiFePO4 Battery Pack with Pfc with CE for Electric Golf Cart Garden Tools with CE

Product Description

Quick Detail:
Brand Name:QUAWIN
Model Number:QW640-150-FM
Use:20S 60V/64V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 73V
Color:Black/Armygreen
Shell Material:Aluminium alloy
Additional functionality:LED display
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:73V
Output current:15a(Max)
Output power:1095W
Electromagnetic compatibility: meets the requirements of GJB
Reliability: MTBF>=3000H
Charge mode:CC-CV(Constant Current-Constant Voltage)
Optional features:The battery pack with super capacitor can be charged from 0V,
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Packaging & Delivery : 4pcs/Carton
Carton size: 475*422*375mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Specifications:
20S 60V/64V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-40ºC ~ 70ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 73V
• Charging current: 15a(Max)
• Dimensions (mm): 312*140*90
• Weight: 3200g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH Call us to know more details datasheet.

(A Typical Model)
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-600-FM	(LiFePO4)	AC 100~264V	12.8(4S)	14.6	60
QW256-400-FM			25.6(8S)	29.2	40
QW384-250-FM			38.4(12S)	43.8	25
QW512-200-FM			51.2(16S)	58.4	20
QW640-150-FM			64(20S)	73	15
QW768-130-FM			76.8(24S)	87.6	13
QW148-600-LM	(Lithium)		14.8(4S)	16.8	60
QW259-400-LM			25.9(7S)	29.4	40
QW370-250-LM			37(10S)	42	25
QW481-200-LM			48.1(13S)	54.6	20
QW629-150-LM			62.9(17S)	71.4	15
QW740-130-LM			74(20S)	84	13
QW120-600-SM	(Lead Acid)		12(1S)	14.7	60
QW240-400-SM			24(2S)	29.4	40
QW360-250-SM			36(3S)	44.1	25
QW480-200-SM			48(4S)	58.8	20
QW600-150-SM			60(5S)	73.5	15
QW720-130-SM			72(6S)	88.2	13

---
