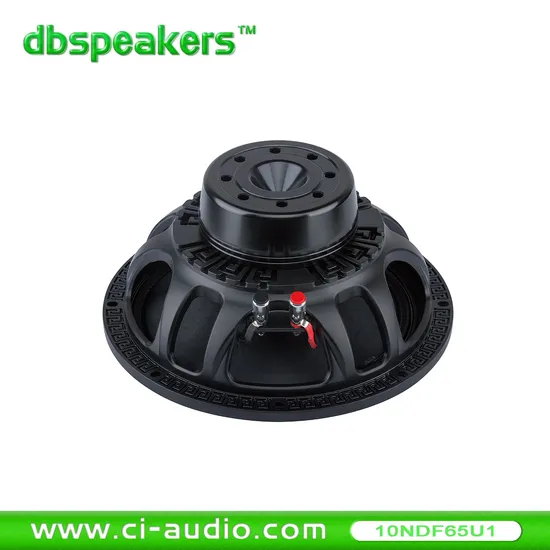

PA Audio Sound System Line Array Speaker 10′′ Neodymium Woofer with Wooden Box.

Product Description

PA Audio Sound System Line Array Speaker 10'' Neodymium Woofer With Wooden Box.
2.5 INCH EDGEWOUND CCA VOICE COIL 96 dB/SPL SENSITIVITY 700 WATT PROGRAM POWER HANDING FEM OPTIMIZED MOTOR AND SUSPENSIONS OPTIMIZED COOLING SYSTEM RESONANCE FREE AND HEAVY DUTY BASKET DESIGN ALUMINIUM DEMODULATING RING GENERAL SPECIFICATIONS

Nominal diameter	mm (in.)	262(10)
Nominal impedance	Ω	8
Minimum impedance	Ω	6.8
Program power (1)	W	700
AES Power rating(2)	W	350
Sensitivity (3)	dB	96
Frequency range	Hz	65 ~ 4000
Voice coil diameter	mm (in.)	65(2.5)
Chassis material	Aluminium
Magnet material	Neodymium
Magnet dimensions (ODxIDxh)	mm	64 x 10 x 10
Coil material	CCAW
Former material	Glass Fiber
Xmax(4)	mm	6
Xmech(5)	mm	10
Gap height	mm	8
Voice coil Wingding height	mm	16

SMALL SIGNAL PARAMETERS

DC resistance	Re	Ohm	5.2
Resonance frequency	Fs	Hz	65
Moving mass	Mms	g	38
Compliance	Cms	mm/N	0.15
Force factor	BL	N/A	16.8
Mechanical Q-factor	Qms		2.7
Electrical Q-factor	Qes		0.39
Total Q-factor	Qts		0.34
Equivalent air volume	Vas	I	31
Voice coil Inductance	Le	mH	0.9
Diaphragm area	Sd	cm²	346
Reference efficiency	Eta 0	%	2.1

SHIPPING INFORMATION

Net weight	Kg	3.5
Multipack size (1) (W x D x H)	mm	280 x 280 x 154
Multipack weight	Kg	4

Quality Assurance
Since the raw material sent in untill the speaker sent out, every aspect of them will be fully checked.
We have many advanced test equipments to measure the quality of products. No defectives will be send out.
Our company have a nice quality control managing system(QC) that have strict management of products and staffs.

FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer with our own factory ,we have more than 15 years experience.
2.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
3. How many days do you need to prepare the goods?
We need about 20-25 working days for large order.

---
