Color Doppler Trolley Ultrasound Machine Price

Product Description

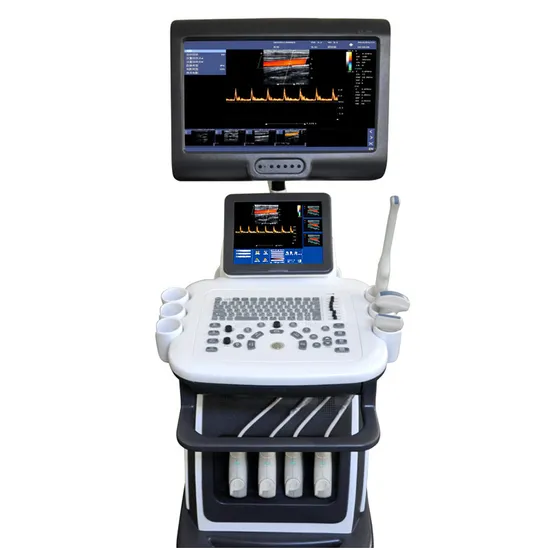

Product Description Color Doppler Ultrasound Diagnostic Machine HE-S80

Equipment usage The product is suitable for ultrasonic diagnostic examination of human abdomen, superficial and small organs, and peripheral blood vessels. Number of channels, number of array elements: Number of physical channels: ≥64 Number of probe array elements: ≥128 Display system specifications: Main screen: high-resolution 19-inch widescreen LCD monitor Auxiliary screen: 10.4-inch LCD touch screen display Dual operating systems and telemedicine: The instrument requires two sets of mutually independent operating systems: ultrasound system and Win7 or above workstation system, which requires built-in equipment and independent operation of dual systems (non-switching). Through the instrument's own Wifi connection and application software, remote medical services such as image and video transmission, expert remote guidance, and real-time online training can be realized. Main technical parameters and functions: Fully digital imaging technology 1.Multi-beam synthesis 2.Real-time dynamic focus imaging point by point 3.Pulse inverse harmonic composite imaging 4.Space composite 5.Image enhancement and noise reduction Imaging mode:1.B mode 2.M mode 3.Color (color Doppler) mode 4.PDI (Power Doppler) mode 5.PW (Pulse Doppler) mode Image display mode B, B+B, 4B, B+M, M, B+Color, B+PDI, B+PW, PW, B+Color+PW, B+PDI+PW, B/BC dual real-time Probes supported by the ultrasound system 1.Convex array probe, linear array probe, intracavitary probe, micro convex probe, rectal probe, superconducting visual flow probe, phased array cardiac probe 2.Probe frequency: 2.5-10.0MHz 3. Probe socket: ≥4 Movie playback 1.2D mode, B max: ≥5000 frames, Color, PDI max: ≥2500 frames; 2.Timeline mode (M, PW), maximum: ≥ 190s

Image enlargement Real-time scanning (B, B+C, 2B, 4B), state: stepless zoom Image storage 1.Support JPG, BMP, FRM image format and CIN, AVI movie format 2.Support local storage; 3.Support DICOM, comply with DICOM3.0 standard 4.Built-in workstation: support large-capacity hard disk (≥500GB), support patient data retrieval and browsing Measurement and calculation 1.Software package: abdomen, gynecology, obstetrics, small organs, heart, blood vessels, etc.; 2.B/C mode routine measurement: distance, area, circumference, volume, angle, area ratio, distance ratio 3.Routine measurement in M mode: time, slope, heart rate, distance 4.Routine measurement in Doppler mode: heart rate, flow rate, flow rate ratio, resistance index, pulsation index, manual/automatic envelope, acceleration, time, heart rate 5.Obstetrics B, PW mode application measurement: including comprehensive obstetrical diameter measurement, weight, singleton gestational age and growth curve, amniotic fluid index, fetal physiological score measurement, etc. 6.Gynecological B-mode application measurement 7.Application measurement of heart B and M mode 8.Application measurement of vascular PW mode 9.Small organ B-mode application measurement 10.Urinary B-mode application measurement 11.Pediatric B-mode application measurement 12.Abdominal B-mode application measurement
image parameters: Mode B 1. Grayscale mapping: ≥15 files 2. Noise suppression: ≥8 files 3. Frame related: ≥8 files 4. Edge enhancement: ≥8 files 5. Image enhancement: ≥5 files 6. Space composite: switch adjustable 7. Scanning density: high, medium and low 8. Image flip: up and down, left and right 9. Maximum scanning depth: ≥320mm M mode 1.Sweep Sleep: ≥5 levels adjustable 2.Line Average: ≥8 files PW mode 1.SV size/position: SV size 1.0-8.0mm adjustable 2.PRF: ≥16 files, adjustable from 0.7kHz to 9.3KHz 3.Sweep Sleep: ≥5 levels adjustable 4.Correction Angle: -85°~85°, step length 5° 5.Spectrogram flip: switch adjustable 6.Wall filter: ≥4 gears adjustable 7.Doppler sound: ≥20 files Color/PDI mode 1.PRF: ≥15 gears, 0.6KHz - 11.7KHz 2.Color map: ≥4 types 3.Color related: ≥8 files 4.Post-processing: ≥4 files Parameter save and restore 1.Support one-key saving of image parameters; 2.Support one-key reset of image parameters; Standard configuration: 1. Full digital color Doppler ultrasound host (host built-in hard disk 500G): 1 set; 2. 3.5Mhz variable frequency convex array probe: 1 pc; 3. 7.5Mhz variable frequency linear array probe: 1 pc; (Replaceable 6.5Mhz frequency conversion cavity probe: 1) 4. Instructions and random qualifications and documents: 1 set; 5. Built-in Win7 telemedicine workstation system: 1 set; 6. Wireless keyboard and mouse: 1 set;
