Basic Info.
Model NO.
V-CBP05/10/15/20/25KG
Certification
RoHS, ISO, CE
Transport Package
Caton Box Packages
Specification
5/10/15/20/25KG
Product Description

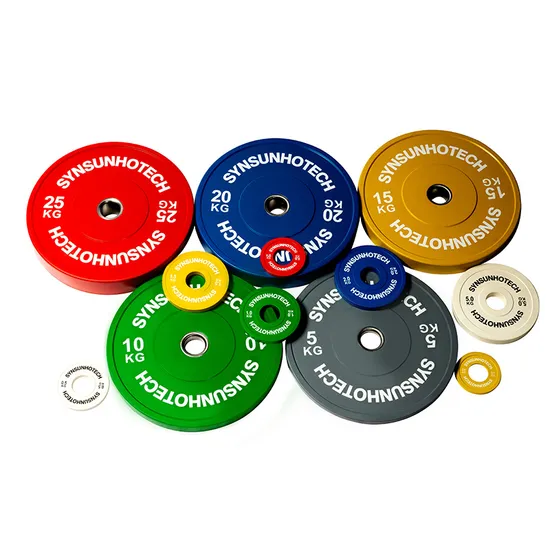

Custom Logo Bumper Barbell Plate Set Rubber Weight Plate
1,Stainless Steel insert ring after drooping without loosen
2, Quality bear investigation to customers
3, Heavy duty dropping without MOQ requirments
4, Raised Vulcanization logo with white silk printing logo
5, Factory directly sell price with faster delivery
6, Alloy rubber formulation color more bright and antifriction and ultraviolet-proof
7,Dropping times more than 30000 times ,3 years guarantee time
8,cheap price with higher quality production ,color rubber not black migrate
Professional manufacture high rank color rubber weight bumper plate .
Color Rubber Bumper Plate GYM Strengh Training Weightlifting Bumper Plate
Faboulos rubber tensile elongation tearing strength ,druable dropping plate OEM production various styles .
Precision processing refine competition rubber weight plate with 1% gram tolerance .
Color competition rubber bumper weight plate main technical parameter
Color Virgin Rubber Bumper Plate with custom logo free weight body building bumper plate
| Type | Out diameter | Collar Opening | Width/Thicknes | Durometer Rating | Weight tolerance |
| 5KG | 450mm | 50.4mm | 24mm | 98 ShA | +/- 50grams |
| 10KG | 450mm | 50.4mm | 30mm | 96ShA | +/- 100grams |
| 15KG | 450mm | 50.4mm | 54mm | 96ShA | +/- 150 grams |
| 20KG | 450mm | 50.4mm | 68mm | 96 ShA | +/- 200 grams |
| 25KG | 450mm | 50.4mm | 76mm | 96 ShA | +/- 250 grams |
| 10LB | 450mm | 50.4mm | 24mm | 98 ShA | +/- 45grams |
| 25LB | 450mm | 50.4mm | 30mm | 96ShA | +/- 100grams |
| 35LB | 450mm | 50.4mm | 54mm | 96ShA | +/- 150 grams |
| 45LB | 450mm | 50.4mm | 68mm | 96ShA | +/- 200grams |
| 55LB | 450mm | 50.4mm | 76mm | 96 ShA | +/- 250 grams |
5KG Color Rubber Bumper Plate Main Techncial Parameter
1,Code :V-CBP05
2,Model :5KG
3,Color:Gray
4,Diameter:450mm
5,Thickness:24mm
6,Insert Ring Dia.:50.5mm
7,Weight Tolerance :50 Gram
8,Shore Hardness :98 Degree
9,Rubber Material:NR SBR BR
10,Adhesive Binder:RESIN CHEMLOK
11,Vulcanization Temperature :155 ºC
12,Vulcanization Time :2000 S
13,Vulcanization Speed :Higher
14,Coated Rubber :Alloy Rubber
15,Dropping Times :>20000 Times
16,Guarantee :2 years 10KG Color Rubber Bumper Plate Main Techncial Parameter
1,Code :V-CBP10
2,Model :10KG
3,Color:Green
4,Diameter:450mm
5,Thickness:30mm
6,Insert Ring Dia.:50.5mm
7,Weight Tolerance :100 Gram
8,Shore Hardness :96 Degree
9,Rubber Material:NR SBR BR
10,Adhesive Binder:RESIN CHEMLOK
11,Vulcanization Temperature :155 ºC
12,Vulcanization Time :2800 S
13,Vulcanization Speed :Middle
14,Coated Rubber :Alloy Rubber
15,Dropping Times :>20000 Times
16,Guarantee :2 years 15KG Color Rubber Bumper Plate Main Techncial Parameter
1,Code :V-CBP15
2,Model :15KG
3,Color:Yellow
4,Diameter:450mm
5,Thickness:54mm
6,Insert Ring Dia.:50.5mm
7,Weight Tolerance :150Gram
8,Shore Hardness :96 Degree
9,Rubber Material:NR SBR BR
10,Adhesive Binder:RESIN CHEMLOK
11,Vulcanization Temperature :155 ºC
12,Vulcanization Time :3800 S
13,Vulcanization Speed :Low
14,Coated Rubber :Alloy Rubber
15,Dropping Times :>30000 Times
16,Guarantee :3years 20KG Color Rubber Bumper Plate Main Techncial Parameter
1,Code :V-CBP20
2,Model :20KG
3,Color:Blue
4,Diameter:450mm
5,Thickness:54mm
6,Insert Ring Dia.:50.5mm
7,Weight Tolerance :200Gram
8,Shore Hardness :96 Degree
9,Rubber Material:NR SBR BR
10,Adhesive Binder:RESIN CHEMLOK
11,Vulcanization Temperature :155 ºC
12,Vulcanization Time :4200 S
13,Vulcanization Speed :Low
14,Coated Rubber :Alloy Rubber
15,Dropping Times :>30000 Times
16,Guarantee :3years 25KG Color Rubber Bumper Plate Main Techncial Parameter
1,Code :V-CBP25
2,Model :25KG
3,Color:Red
4,Diameter:450mm
5,Thickness:76mm
6,Insert Ring Dia.:50.5mm
7,Weight Tolerance :250Gram
8,Shore Hardness :96 Degree
9,Rubber Material:NR SBR BR
10,Adhesive Binder:RESIN CHEMLOK
11,Vulcanization Temperature :155 ºC
12,Vulcanization Time :5000 S
13,Vulcanization Speed :Lower
14,Coated Rubber :Alloy Rubber
15,Dropping Times :>30000 Times
16,Guarantee :3years
>>
