8T punch machine with mold for aluminium flip off seal

Product Details

Product Description

Product Description

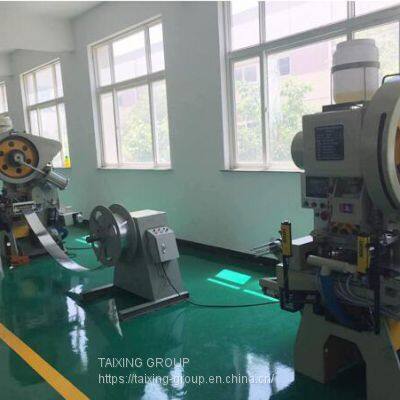

Punching machine (16 tons) with mould (5 cavities) & accessories, for 20mm aluminum cap
1.1 Components of the Machine
a. 16 tons power press, 380V (compatible with 440V);
b. Mould with 5 cavities for 20mm cap, made as per customer's cap drawing and samples;
c. Machine control system;
d. Uncoiler and servo motor powered material feeder;
e. Aluminum coil lubrication system; use industry white oil
f. Air generator and cap blowing system;
g. Ring separator and conveyor belt;
h. Recoiler of waste material
i. Mould protection system;
j. Hand protection system;
1.2 Capacity: 40000-44000 caps per hour (frequency: 135-150 times/min)
1.3 Aluminium coil width: 151mm
1.4 Spare parts: 50% parts of the 5 cavities.
1.5 Tools: Standard tools for repair and maintenance of the machine & mould.

---
