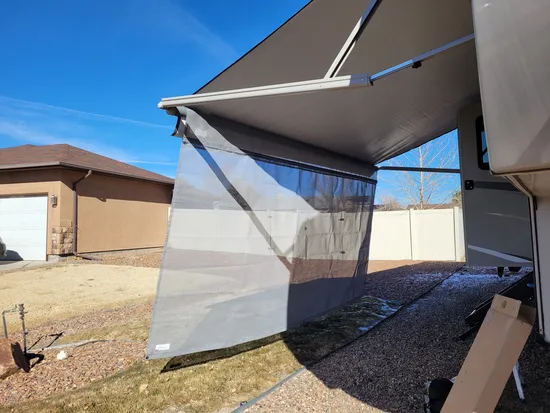

Hot Sale RV Camper Awning Caravan Awning Room RV Tent Caravan Trailer Porch

Product Description

Vinyl Coated Mesh
Color Mesh material is the main fence material, it is colored PVC coated polyester fabrics. We can supply the most competitive materials for building area fence. it protects the outside people from hurting by the drops on the buildings such as truck tarps, windscreens, custom covers, shade structures, and many other various applications. Gebo vinyl mesh fabric is weather-resistant, durable, lightweight, and is used for outdoor and indoor applications.

Vinyl Coated Mesh Features Width (inches): up to 3.20m (126)
Content: 100% Polyester Scrim (mesh)
Coating: PVC (vinyl) coated
Finish: UV / Mildew Resistant/ flame retardant
Yarn: 1000 Denier x 1000 Denier / 500x500D / 840Dx840D
Weave: 4.5x4.5 / 6x6 / 9x9 / 11x11 / 12x12 / 14x14 /18x14
Color: Red, White Blue Black Green, Yellow, Gray, Orange, Tan, Burgundy
Low Temperature: -30 degrees
High Temperature: 70 degrees

PVC Coated Polyester Mesh Fabric Uses Landscape tarps Truck tarps Weed barrier Scuba diving bags Liners Tennis court screens and dividers Privacy screens Debris nets Wet mops Much more!
Product Specification

Item:	PVC Yarn Coated Woven Mesh
Description:	840DX840D 11X11 340gsm/10oz sqyd +/- 0.5oz
Material:	27% Polyester yarns, 73% PVC coated
Process:	Woven
Color:	Various & Multi, and below tech requirement only for solid color but not including multi-color.
Packing:	Inner core, 50,75,100 yards roll packing with PE film; Customized
Mechanical Properties
		Warp		Fill		Method		Remark
Tensile(Grab):		200lbs		190ibs		ASTM D-5034		min
Tear(Tongue):		75lbs		70lbs		ASTM D-2261		min
Adhesion:		6 lbs/inch		6 lbs/inch		ASTM D 751		min
Flexibility:		No less than 1,500 cycles				DIN 53351		min
Treatment
UV:		SAE J 1960, color no fade more than 0.5 Macadam units						Required
		(Delta E <=0.5) at 440KJ. IN Xenon Arc.
Low temperature:		-30ºC(-22ºF), more low temperature viable.						customized
Fire resistance:		NFPA 701, MVSS 302,						customized
		Less than 102 mm/min, self-extinguish within 0.2 seconds after the fire left.
Mildew resistance:		ATCC 30:2004						customized
		2 weeks of no growth.
Notes: All above only accepted by testing in the lab.
Others
Both soft and hard touch could be chosen according to the different application;
No crack after fold, crushed and flexed;
Both for heat sealing and high-frequency welding;
No peel off after grommets setting, and strong enough for pushing by bungees or strong wind;
Application
Truck covers
Fence
Shades
Cushions
Grain and trash bags
And others

---
