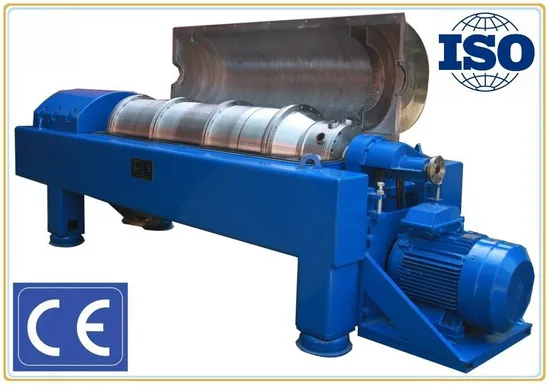

Industrial Scale Decanter Centrifuge machine

Product Description

Our decanter centrifuge specially used for remove sludge from olive oil.
Introduce of the machine as following:
This chemical separation equipment has been applied two-phase(solid-liquid) and three-phase(solid-liquid-liquid) slurries separation industry of chemicals, pharmaceutical, environment protection, as well as mining and food, etc.
Advantage
1. This liquid clarifying device adopts horizontal design which balances the layout of electric motor and bowl. As a result, outstanding operation stability generates minimized vibration.
2. Dual eletric motor control enables stepless speed adjustment on bowl and spiral components.
3. Scroll conveyor flight inside this continuous centrifuge is painted by abrasion resistant alloy or welded by hard alloy. Moreover, main components on our horizontal decanter centrifuge, such as rotating bowl and spiral parts, are made from corrosion resistant stainless steel or dual- phase steel, whereby offering exceptional speed limits and separation ratio.
4. Our mud dewatering equipment comes with three options including cycloidal gear, planetary gear and hydraulic differential, resulting in large rang of differential adjustment. Therefore, this industrial centrifuge can be applible to diverse solids.
5. Multipe protections are available on our horizontal decanter centrifuge to ensure operation safety, including over-vibratation protection, bearing temperature detection, screw conveyor torque protection rotating and differential speed detection, as well as nitrogen-filled explosion- proof protection, motr overload and over heat protection.
6. JG type rubber shock absorber requires no anchor bolts.
Application
1. industrial and municipal wastewater treatment
2. oil&gas drilling mud/fluid control
3. washing, separation and dewater of starch
4. mycelium and zymtotic fluid separation for antibiotic
5. dewatering of soybean and wheat protein
6. dewatering of fish power and fish meat
7. dewatering of vinasse
8. clarification and extraction of fruit juice
9. separation and purification for animal and vegetable oil
10.production and purification of olive oil, palm oil, avcado oil
11.separation and purification for coal tar
12.grading of kaolin and grapgite
13.grading and dewatering of dyestuff and pigment
14.froth flotation for cleaned coal and dewatering of coal mud
15.grading and dewatering of minerals

Structural Diagram

Technical Paramter:

Model	Technical parameter					motor power		outline dimension(mm)	Machine weight (KG)
	(Diameter)mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
LW250×1000	250	3600	1000	1813	1-3	7.5/11	4/5.5	2065×1050×800	1100
LW360×1200	360	3500	1200	2467	3-8	11/18.5	7.5/11	2600×1500×850	1900
LW360×1500	360	3500	1500	2062	3-8	11/18.5	7.5/11	2800×1400×850	2000
LW420×1750	420	3200	1750	2406	4-20	30/37	11/18.5	3120×1580×1050	3000
LW450×1600	450	3200	1600	2578	5-25	30/45	11/22	3780×1050×1180	3500
LW450×1800	450	3200	1800	2578	5-25	30/45	11/22	3985×1050×1180	3600
LW450×2000	450	3000	2000	2266	5─25	30/45	11/22	4320×1050×1180	3800
LW500×1800	500	3000	1800	2517	10-30	37/55	15/22	4200×1110×1200	4300
LW500×2100	500	3000	2100	2517	10-30	37/55	15/22	4500×1110×1200	4500
LW550×1800	550	3000	1800	2769	10-35	45/55	18.5/22	4380×1160×1230	4800
LW550×2200	550	2800	2200	2412	10-35	45/55	18.5/30	4780×1160×1230	5000
LW650×1750	650	2000	1750	1454	20-50	75/90	30/37	4576×1300×1250	6000
LW650×2000	650	2000	2000	1454	20-50	75/90	30/37	4900×1300×1250	6200
LW800×2000	800	1800	2000	1450	40-100	90/110	45/55	6052×1460×2100	10000
LW1000×2350	1000	1600	2350	1432	50-140	110/132	55/75	6850×1860×2300	12800

More parts show of the decanter centrifuge:
Productive process
Workshop
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you ASAP.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
