VB-150T Vertical Plastic Baling Machine Baler

Product Description

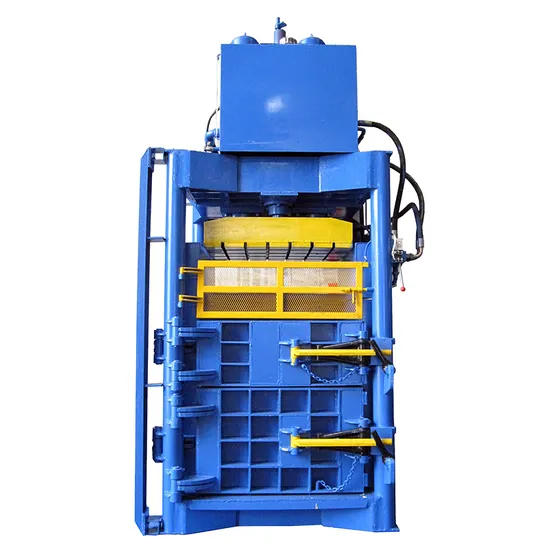

VB-150T Vertical Baling Machine

(1)This series machine mainly is used for baling PET bottle,cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding. (2)Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6 pieces per hour. The weight of each piece is from 30 Kg to 500 Kg according to the material.
(3)Also, we can produce the machine according to the requirement from customer.
a.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy
b.Electric button control, it can reaches manual adjusting and semi automatic control
c. Independent feeding opening with automatic pulling out installation, to reduce labor force.
d.It can be made according to the demands of customers

Model	Baler size L*W (mm)	Work pressure (KN)	Main power (KW)	Overall dimension L*W*H(mm)	Total Weight (KG)
VB-30T	900*600mm	300kn	7.5kw	1200*1000*3150mm	1500kg
VB-40T	900*600mm	400kn	7.5kw	1200*1000*3150mm	1800kg
VB-60T	1000*650mm	600kn	11kw	1530*1300*3550mm	2800kg
VB-80T	1000*650mm	800kn	11kw	1600*1350*3550mm	3280kg
VB-100T	1000*650mm	1000kn	15kw	1600*1350*3550mm	4200kg
	1100*800mm	1000kn	15kw	1700*1400*3550mm	4700kg
	1250*1100mm	1000kn	18.5kw	1840*1500*3550mm	6300kg
VB-150T	1100*800mm	1500kn	18.5kw	1800*1600*3846mm	7720kg
	1100*1250mm	1500kn	22kw	2000*1900*3846mm	8500kg

---
