6kv 800kVA Complete Set of Reactive Power Capacitor Compensation Device High-Voltage Cabinet Parallel TBB

Product Description

PRODUCT INTRODUCTION:

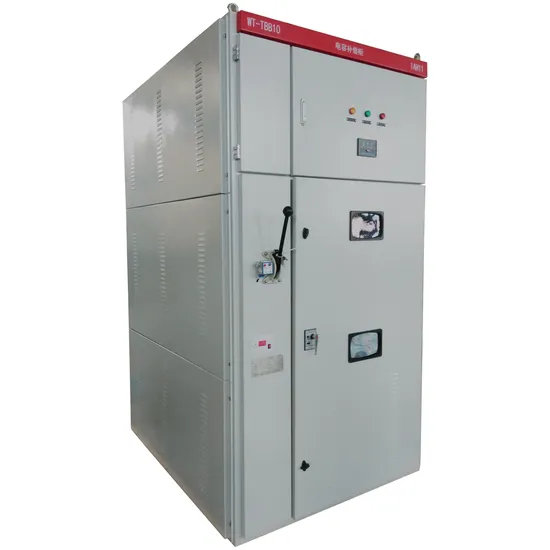

WT-TBB high voltage shunt capacitor complete set device is mainly used for reactive power compensation of 6kV, 10kV, 35kV Power frequency power systems, improve power factor, improve voltage quality, reduce line loss, and give full play to the efficiency of power generation and power supply equipment. The device is composed of high-voltage switch cabinet (including high-voltage circuit breaker, disconnector, current transformer, relay protection, measurement indication part, etc.), series reactor, zinc oxide arrester and its recorder, discharge coil, isolating switch, vacuum contactor, shunt capacitor, special fuse breaker, post insulator, busbar, cabinet, fence and galvanized steel frame, etc.
MODEL DESCRIPTION:
MODEL REFERENCE TABLE:

Cabinet type shunt capacitor device
Type	Voltage (KV)	Total capacity (KVA)	Unit capacity (KVA)	Reactance rate (%)	Cabinet size (mm)	Number of cabinets	Wiring mode
TBB6-100/34-AK	6	100	34	6	900*1500*2500	1	Y
TBB6-800/134-AK	6	800	134	6	1200*1500*2500	2	Y
TBB6-1500/167-AK	6	1500	167	6	1200*1500*2500	3	Y
TBB6-1800/200-AK	6	1800	200	6	1200*1500*2500	3	Y
TBB6-3000/334-AK	6	3000	334	6	1200*1500*2500	3	Y
TBB6-4800/400-AK	6	4800	400	6	1200*1500*2500	4	Y
TBB6-6000/250-AK	6	6000	250	6	1200*1500*2500	8	Y
TBB10-100/34-AK	10	100	34	6	1200*1500*2500	1	Y
TBB10-800/134-AK	10	800	134	6	1200*1500*2500	2	Y
TBB10-1500/167-AK	10	1500	167	6	1200*1500*2500	3	Y
TBB10-1800/200-AK	10	1800	200	6	1200*1500*2500	3	Y
TBB10-3000/344-AK	10	3000	344	6	1200*1500*2500	3	Y
TBB10-4800/400-AK	10	4800	400	6	1200*1500*2500	4	Y
TBB10-6000/250-AK	10	6000	250	6	1200*1500*2500	8	Y

Frame type shunt capacitor device
Type	Voltage (KV)	Total capacity (KVA)	Unit capacity (KVA)	Reactance rate (%)	Cabinet size (mm)	Wiring mode
TBB6-600/100-AKW	6	600	100	6	4748*2900	Y
TBB6-900/100-AKW	6	900	100	6	4748*2900	Y
TBB10-4800/334-AKW	10	4800	334	6	7000*4000	Y
TBB10-3000/500-AKW	10	3000	500	6	7000*4000	Y
TBB10-6000/250-AKW	10	6000	250	6	7000*4000	Y
TBB35-6000/250-AKW	35	6000	250	6	7500*7800	Y
TBB35-10000/334-AKW	35	10000	334	6	7500*7800	Y

TECHNICAL PARAMETER:
Rated voltage: 6 ~ 35kV
Rated capacity: 100 ~ 20000kvar
Wiring mode: triangle, single star and double star
Protection mode: Low voltage, over-voltage protection, time limit quick break, over-current, open delta protection, differential protection, unbalanced current protection, etc
CONDITIONS OF USE:
1) Ambient temperature: - 35 ºC - 55 ºC, the average temperature within 24 hours shall not exceed 35 ºC.
2) Relative humidity: no more than 90%.
3) Atmospheric pressure: 80-110kpa.
4) Altitude: ≤ 2000m.
5) Wind speed: ≤ 35m / s.
6) Installation location: indoor or outdoor
7) Environmental requirements: no explosive medium is allowed in the place of use, the surrounding medium shall not contain corrosive metal and insulating gas and conductive medium, water vapor and serious mould shall not be allowed; facilities shall be provided to prevent rain, snow, wind and sand.

---
