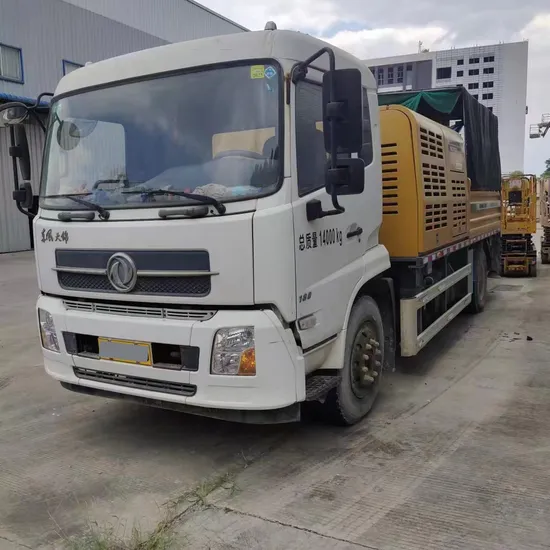

Quality Spot Xg Used Vehicle-Mounted Concrete Pump Truck

Product Description

Product Description
Vehicle parameters:
It is very helpful for the transportation and pouring of concrete on construction sites:
Category Specifications

Model	XZS5140THB
Maximum Theoretical Output Pressure	22MPa
Maximum Theoretical Displacement	100m³/h
Chassis Engine Model	EQH180 - 52
Upper Engine Model	DFL1160BX1V
Vehicle Curb Weight	13805kg
Total Vehicle Mass	14000kg
External Dimensions (Length × Width × Height)	9185×2510×3170mm

Key information:
Based on the search results,here are the key advantages of XGs XZS5140THB Truck-Mounted Concrete Pump
Key Advantages of XG XZS5140THB
Powerful Pumping Capability
• Equipped with a high-performance S-valve pump,the XZS5140THB offers a large pumping flow rate and high pressure,capable of meeting the demands of various complex engineering projects.
Stable Working Performance
• The pump truck uses XGs self-developed four-section material placement special chassis,which ensures more stable driving and working performance,reducing vibration and sway,and enhancing the accuracy and stability of pumping.
Flexible Operation
• Featuring XGs self-developed hydraulic proportional control technology,the XZS5140THB can be realized flexible pumping actions and precise job scheduling,improving work efficiency and productivity.
Comprehensive Safety Protection
• With XGs self-developed intelligent electrical control system,the pump truck has multiple safety features,including overload protection and automatic oil temperature and current adjustment,ensuring the safe and reliable operation of the equipment.
Efficient Maintenance
• The XZS5140THB utilizes XGs self-developed quick-disassembly technology,allowing for the rapid removal and replacement of pumping pipes and accessories,simplifying maintenance and reducing downtime and repair costs.
Detailed Photos

Product Parameters
Category Specifications

Model	XZS5140THB
Maximum Theoretical Output Pressure	22MPa
Maximum Theoretical Displacement	100m³/h
Chassis Engine Model	EQH180 - 52
Upper Engine Model	DFL1160BX1V
Maximum Net Power of Chassis Engine	129kw/2400rpm
Vehicle Curb Weight	13805kg
Total Vehicle Mass	14000kg
External Dimensions (Length × Width × Height)	9185×2510×3170mm
Production Year	2021
Oil Pump Brand	Rexroth
Loading Height	1500mm
Theoretical Pumping Frequency	25 Times/minute
Inner Diameter of Conveying Cylinder	230mm
Transport Cylinder Stroke	1600mm
Hopper Capacity	0.6 m³
Engine Rated Power/Speed	200/2200 KW/rpm
Fuel Tank Capacity	280L
Displacement	4.752 L
Maximum Speed	89km/h
