6CH AI MAVR Meitrack MDVR MD600 GPS Tracking 1080P Camera Video Surveillance

Product Description

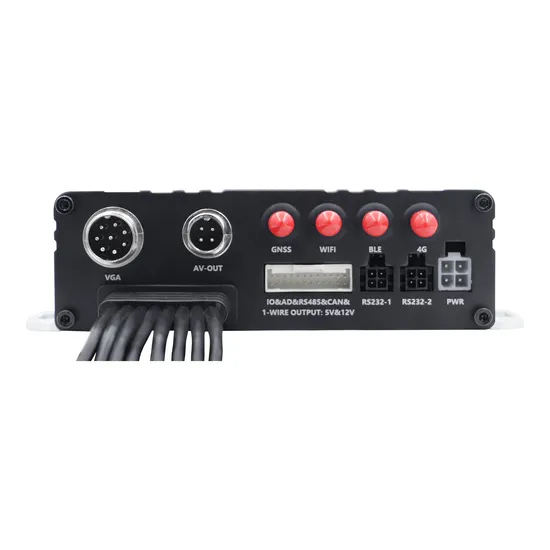

Meitrack 6-Channel 1080P SSD Mobile DVR MD600
Product Overview
Specifications

Dimension	120 mm x 154 mm x 63mm
Weight	740g (excluding accessories)
RS232 (optional)	Thai DLT certification
Working temperature	-20°C to 70°C (without battery)
Sensors	6-axis acceleration sensor
SPI memory	Built-in 64Mbit for storing GPRS/SMS/GPS LOG data
I/O Port	Main cable interfaces: 8*Din (Max 8*Din) + 2*Dout(Max 8*Dout) + 2*AD(Max 6*AD) + 1*Speed_IN + 1*1-wire + 2*RS485 +1*CAN + 1*DC_5V + 1*DC_12V Other interfaces: 2-channel for RS232, 1-channel for ACC
Rated voltage	DC: 11.4V ~ 36V,Rated 12V/3A
Power consumption	Startup power consumpution for the host with audio and video: about 6W Daytime: about 24W with 6-way cameras, and about 29W with a display added; Nightime: about 32W with 6-way cameras, and about 37W with a display added; When connected to a single camera, the normal range is 50mA~100mA during the day, and 200mA~250mA at night.
AI Video	ADAS, DMS
SD Cards & SSD	1*M2 SSD and 2*SD cards; capacity: 2TB + 2*512GB; supports PCIe*2 and PCIe*4 NVME Protocol M.2 NGFF SSD (2280 specifications)
System operation	Dual-system operation, dual-channel communication (to prevent data loss)
Video input	6 channels for AHD cameras with D1/720P/1080P cameras arbitrary mixing; Adaptive camera resolution and format (PAL and NTSC); Up to 6*1080P@15fps live recording
Video output	1 channel for VGA video output (8-Pin aviation plug), max. 1080P, adapt to the display resolution 1 channel for CVBS aviation plug (level: 1.0Vp-p, impedance: 75Ω); Resolution: PAL 704*576, NTSC 704*480
Compression standard	H.264/H.265 configurable
Image display	Support 1 or 6 images display
Audio input	6 channels for camera MIC input. The camera should support audio. 1 channel for intercom handle input; 1 channel for 3.5mm headset input (GSM communication interface)
Audio output	1 channel for independent audio output (parallelly connected to the AV-OUT interface, VGA aviation plug interface and intercom handle interface) 1 channel for 3.5mm headset output (GSM communication interface)
Audio compression	G.726/G.711a/AAC
Video Request and Playback	Retrievable playback by channel, video type, bitstream type and time
Recording method	Normal recording and alarm recording; audio and video recorded simultaneously
WiFi	IEEE 802.11 b/g/n, frequency 2.4G & 5G, supports STA and AP dual mode
Bluetooth	Supports master-slave dual mode, can read the bluetooth accessories,and can configure parameters through the APP
Positioning mode	GPS/GPS_BEIDOU/GPS_GLONASS
Positional accuracy	2.5 m
Sensitivity	-162 dBm
GNSS antenna	Supports antenna insertion/extraction/short circuit detection
Protocol surpported	JT/T 1078-2016, JT/T808-2019Meitrack protocol (CCE) and RTMP (an Audio/Video Transport Protocol, also compatible with the Meitrack Audio/Video Private Transport Protocol)
Frequency band	MD600-E GSM: B3/B8 WCDMA: B1/B5/B8 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 MD600-A WCDMA: B2/B4/B5 LTE-FDD: B2/4/5/12/13/14/66/71 MD600-AU GSM: B2/B3/B5/B8 WCDMA: B1/B2/B4/B5/B8 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B40 MD600-J WCDMA: B1/B6/B8/B19 LTE-FDD: B1/B3/B8/B18/B19/B26 LTE-TDD: B41 MD600-G GSM: B2/B3/B5/B8 WCDMA: B1/B2/B4/B5/B6/B8/B19 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41

AccessoriesOptional Accessories

ADAS Camera	DMS Camera
AHD720P/1080P small metal conch camera	Waterproof square camera 720/1080P
Waterproof square camera 1080P	Side mounted waterproof camera 720/1080P
Hoist waterproof camera 1080P	3/5/8/10/15M extension cord
Intercom handle	7-inch VGA display
Bluetooth temperature and humidity sensor	7-inch CVBS display
Bluetooth beacon AB401	Bluetooth beacon AB402
Fuel sensor (voltage AD)	Capacitive oil sensor (voltage AD)
12V/24V relays	iButton card reader
Ultrasonic Fuel Sensor (Range 100cm)	Ultrasonic Fuel Sensor (Range 250cm)
Ultrasonic Fuel Sensor (Range 400cm)	Ultrasonic WIFI serial port debugging tool
Microphone + speaker + connector cable	RFID reader +ID card
High temperature batteries	Digital temperature sensor
Memory card	M.2 hard drive

Certificates: CEMeitrack MS03 Advanced GPS Tracking Software
MMS03 is a professional centralized software that is tailor-designed to support businesses and sustainable platforms, ideal for developers. The MS03 spotlights such features as GPS Tracking, Video Surveillance, and Alarm Systems amongst others.
Contact us to get a free demo!
Case StudyCity Buses
MD522S | Mexico
The Mexican government introduced Meitrack's MDVR bus management solution to guarantee the safety of Mexican residents, ensure a safe bus travel, and prevent illegal activities inside buses. In this project, Meitrack MD522S, camera, LCD display, SOS button, A91 passenger flow sensor and MS03 tracking platform work together to provide a one-stop internal bus monitoring solution.
Armored Vehicles
MD511H | Malaysia
Inside an armored bank vehicle, a MD511H mobile DVR is connected to four cameras. The video surveillance solution only allows
authorized staff to start the vehicle. If the vehicle door is opened without permission or the vehicle is hijacked, the monitoring
center can quickly and efficiently keep track of what's happening inside the vehicle, remotely cut off the en gine to prevent the
vehicle from moving, and take immediate action to minimize the loss.
Company Overview
Since 2002.20,000m2 state of the art manufacturing facility based in Shenzhen, China.Placed in-house R&D centers in Taiwan, Shenzhen and the United States.Providing OEM&ODM service.Providing software development service.Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.
R&D Center3 R&D centers in Taiwan, USA and Shenzhen.50+R&D professionals including advanced engineers, and supervisors.Equipped with professional testing devices 50+intellectual properties, including industrial design patents and software copyrights.More than 18% of sales revenues invested in research and development every year.
ManufaturingStandardized Production ManagementGPS signal generators MP9000 & MP9100 Agilent
GSM/GPRS integrated tester 8960 Reflow soldering,
SMT machine, solder paste printer, AOI tester...
Strict Quality Control
IATF16949:2016 Quality Management System
ISO9001:2015 Quality Management System
Certs: CE, FCC, RoHS,PAHs, etc.
