2025 Bcmc Hot Sale Multifunctional CNC Machine Bridge Sawjet with Italy Control System for Kitchen Countertop Processing Cutting Combine Waterjet Saw Blade

Product Description

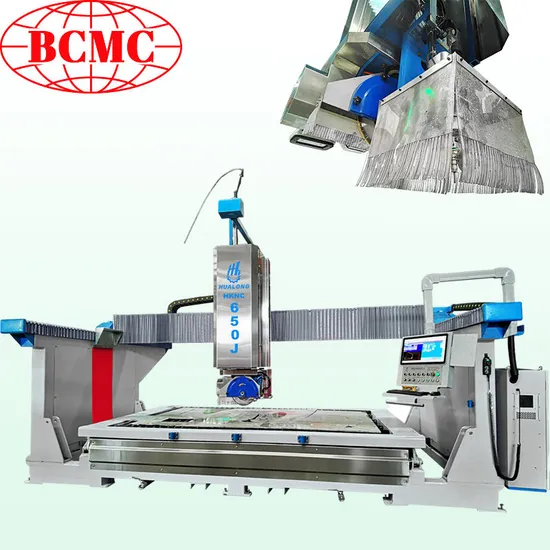

BCMC Machinery BCNC-650J is a kind of multifunctional manufacturing machine for slab cutting, milling, drill, carving. Can handlling different kind of difficult work in one machine. Equiped with CNC touch screen system, USB port, WIFI connect, photograpging camera and vacuum lifter. Ideal for kitchen top, cooking bench, marble, granite and artificial stone processing. It's your good partner for slab processing.
Main Features: Equiped with 5 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation in one time. Vacuum lifter to move the slab easily. Updating with 5 axes waterjet tilting from 0 to 60 degrees and rotae in 360 degrees. Helps cutting easily in small curves cutting. ESA CNC touch screen control system. Easy control and easy interactivity. Photograohing camera equiped. Helps for slab positioning and typeseting. Save time and reduce the waste of processing. Multifunctional processing function which can doing the complex work of cutting, milling, drilling and carving and even the curved surface processing. Cutter head can moves in 90 degrees up and down. Rotate in 360 degrees horizontal. Handling chamfering cutting at any angles in automatic. USB and WIFI connection. Easy to connect and upload your CAD/CAM files to the machine.
Parameters:

Diameter of saw blade	ø350-ø650	mm
Dimension of working platform	410x220	cm
X axis stroke	3500	mm
Y axis stroke	2000	mm
Z axis stroke	500	mm
Max. cutting thickness	190	mm
Power of saw blade motor	15	kw
Power for abrasive waterjet	37	kw
Max. operating water pressure	60000	psi
Water pressure required	35	psi
Water consumption	11.4-16.7	l/min
Gross weight	10000	kg
Dimensions (L x W x H)	620x390x340	cm

Detailed Information For Spare Parts: Control System
Italian ESA operation system and Italian Zeus/Pegasus cad-cam drawing software to fulfil full automatic cutting from beginning to end without manual intervention Digital Servo Motor
Italian Original ESA Servo motor to guarantee accurate positioning and cutting Photo Slab System
Detecting slab with camera positioned above the machine and image acquisition software to catch the slab dimensions to be exploited in the best way possible and carry on the cutting avoiding any defects or any veins in the material. Vacuum Lifter
Suctions cups for lifting and moving cutting pieces in order to exploit the slabs as much as possible. Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool Slab Thickness Detector(Optional)
System to automatically detect the thickness of the slab. Vein Matching Function(Optional)
Easily match up each vein and seam of your project
Working of Our Machine:
Application:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
