Terek Brand Best Price 480 Bar Output High Pressure Pneumatic Nitrogen Gas Booster Pump Filling Transfer Gas System

Product Description

Product Description
The Terek gas booster equipment uses pure compressed air as the driving power source, gas booster pump as the pressure source, and hydrogen, nitrogen, oxygen, helium, N2O, argon, CO2 and other gases as the pressurized medium. The output pressure is proportional to the driving gas pressure.

By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized gas can be obtained. When the pressure of the driving gas source is balanced with that of the pressurized gas, the pneumatic booster pump will be automatically stops and the output gas pressure is stabilized at the preset pressure. Therefore, it has the features of explosion-proof, energy saving, environmental protection, adjustable output pressure, small volume, light weight, simple operation, reliable performance and wide application range.

To operate this system, the drive gas from the air compressor is required to start the Terek booster pump. The pressure of the drive gas can be adjusted by valves and pressure gauges, and the output gas pressure can be adjusted. The expected working pressure can be achieved by adjusting the pressure of the drive inlet. When the driving air pressure and the output pressure are balance, the pump stops filling pressure and the output pressure remains at the preset value.

TEREK gas booster pump uses compressed air to drive large area end piston to small area end to get high pressure gas output. The equipment can be used for compressed air and other gas. The output pressure can be adjusted by inlet valve. The output can ensure gas is not contaminated. Automatic pressure maintaining. Driven by gas, No spark or Flame and No generating heat, Can use it in dangerous places.

Product Parameters
Basically, the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is reciprocating. The automatic reciprocating motion of the piston is controlled by a built-in four-way valve. TEREK pumps are air driven at a drive air pressure of 3 to 8 bar (29 to 116 psi) by the normal air compressor.
Refer to Model Technical Parameters.

Product name	Pneumatic air driven gas booster pump pressurized transfer and filling equipment.
Model	GU-GTB-40
Pressure ratio	40:1
Drive air source pressure	3-8 bar
Maximum outlet pressure	320 bar (46400 psi)
When the driven air pressure is 5.0 bar	High pressure outlet pressure is 200 bar / 2900 psi.
When the driven air pressure is 6.0 bar	High pressure outlet pressure is 240 bar / 3480 psi.
Min gas inlet pressure	15 bar
Max gas inlet pressure	320 bar
Outlet pressure control unit	Drive air regulator valve
Power source	TEREK gas booster pump
Pressure control accuracy	Less than 1%F.S;
Pressure measurement accuracy	0.4 pressure gauge
Valves and piping	High pressure needle valve and stainless steel piping
Weight	38 KG
Export wooden case weight	45 KG
Equipment dimension	580*450*570 mm
Packing size	610*500*600 mm
Packing specifications	Standard export wooden case
Connection size(inch) Gas inlet	NPT1/4
Connection size(inch) Gas outlet	NPT1/4
Production time	12-15 working days.

System Configuration
TEREK gas booster pump uses compressed air to drive large area end piston to small area end to get high pressure gas output. The equipment can be used for compressed air and other gas, the output pressure can be adjusted by inlet valve. The output can ensure gas is not contaminated. Automatic pressure maintaining. Driven by gas, No spark or Flame and No generating heat, Can use it in dangerous places.

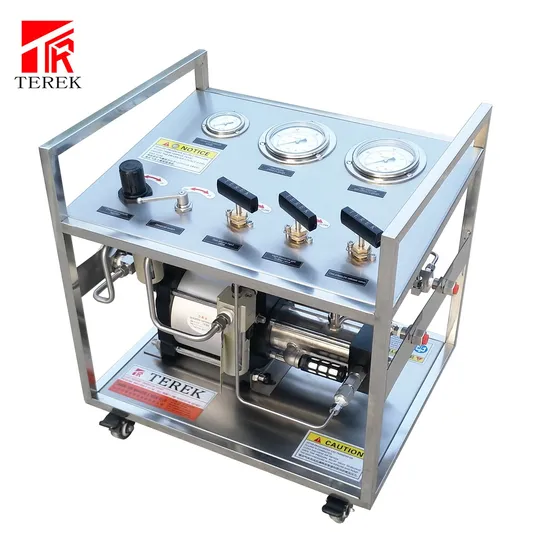

GU-GTB series gas booster unit control cabinet mainly includes one set of GTB series air-driven gas booster pump, pressure gauges, air filter, gas inlet filter, control valves, air regulating valve, pipelines, cabinet, and pressure release valve etc.
In order to ensure the long-term use and stable working efficiency of the equipment, we provide a set of sealing accessories, repair kit, sealing tape, etc.

Detailed Images
Product Advantages

1. All pipes and fittings are made of stainless steel to ensure a long life
2. The pump will stop working automatically when the output pressure reaches the preset value
3. Maintain long working hours with no energy expenditure
4. No dissipated heat during the pressure holding phase
5. No risk for explosion and spark in oil and gas field
6. The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.
7. The working pressure can be adjusted by adjusting the pressure of the driven air.
8. Easy to install, move, use and maintain
Application Fields
1. Pressure test with gas
2. Gas transfer and filling (Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO2/NO2/CH4/LNG/LPG/CNG/FM200 etc.)
3. Charging of gas cylinder and accumulator with nitrogen
4. Supply for isolating gas systems
5. High pressure gas injection system for various industries
6. Transfer of oxygen cylinders
7. Charging of breathing air bottles
8. Leak test
9. Hydrostatic testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, gas bottles and air craft components
Packaging & Shipping

Our Services
1. We'd like to provide our professional advice regarding machines, materials, packing and market for this product.
2. We'd like to customize special machine according to customer's request.
3. We'd like to help our customers for booking ship as customer request.
5. Operation manual will be provided after shipment.
6. We provide one year warranty.
7. Free wearing parts will be sent together with the machine.
8. Working video of the machine will be sent to you accordingly to your need.

All equipment and accessories are guaranteed for one year. Our sales staff and technical department provide permanent technical advice and operation guidance. If you have any questions about the operation of the equipment, please turn off the air source and equipment, check the instructions in time or contact the sales and service personnel. Thanks.
Equipment Inventory and Workshop
Company Information:
TEREK Company focus on high pressure fluid transfer all the time and supply perfect high pressure fluid transfer solution and service. Supplying high-quality product and service is the eternal aim of TEREK.
As the experienced manufacturer of industrial booster pump, the technology of air driven booster pump and pressurization system reach to a good level. Our equipment can pressurize most liquid, such as oil, water, corrosive liquid and chemical liquid applications. High quality seals, long service life available.
Based on the high quality of our products, reasonable prices and excellent after-sales service, we have gained a high reputation in this field of fluid pressure control equipment.
Our main products including:
Pneumatic gas/liquid booster pumps.
Refrigerant booster pump and air amplifier.
Fluid pressurized hydrostatic hydraulic pressure test equipment or high pressure chemical fluid injection equipment.
High pressure oxygen, hydrogen, nitrogen, argon, helium, N2O, CO2 or other gas pressurized transfer refilling equipment or gas injection equipment.
Pneumatic pump glycerin oil pressurized injection equipment.
LPG / Propane and butane pressurized transfer filling station equipment.
Pipe/tube/valve/cylinder/brake pipe, automobile pipe, aircraft hydraulic pipe, pressure vessels hydraulic pressure test machine(Computer control or manual control or Intelligent digital display instrument).
MCU Intelligent digital display instrument pneumatic gas booster pump system leak test bench.
Computer/Intelligent instrument control safety relief valve PSV test bench.
Portable safety valve test clamping table and test equipment.
Online safety valve test instrument equipment.

FAQ
1.Q: Are you manufacturer ?
A: Yes, We are the manufacturer with continuous and improved R&D. Production, Quality Check and service supply.
2.Q: Can I get your price list ?
A: Yes, Sure. In order to send you our available offered price. Please choose the products and let us know the product model and requirement in detail.
3.Q: Do you have stock for all items?
A: In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
4.Q: What is your payment terms ?
A: Sample order: 100% full payment before start to production;
Large order: 30% deposit first, 70% pay after see the BL copy;
5.Q: Can you give us free sample ?
A: Free: if small spare parts and the cost not too much is ok;
Not Free : the cost expensive and all the machine can not be free;
6.Q: How long can be finished the goods ?
Delivery date: 10-15 working days after deposit paid.
Two years warranty, when the products reach to destination.

---
