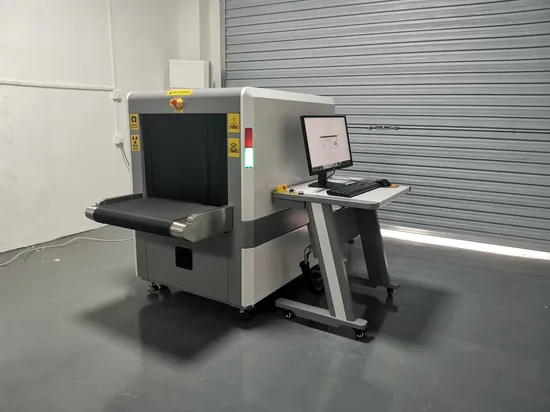

High-Resolution Imaging with The 6040 X-ray Baggage Scanner

Product Description

VXZ6550A Security Inspection Machine Product OverviewThe VXZ6550A X-ray security inspection equipment is an advanced single-level X-ray security product independently developed by our company. It is primarily used for the security inspection of packages, mail, medium-sized boxes, and other items. This equipment is suitable for schools, hospitals, enterprises, government departments, cultural exhibition halls, scenic spots, large events, public security bureaus, prisons, stations, and other venues requiring security checks. Key Features Modular Design: The internal circuit structure of the equipment employs a modular design concept. Through reasonable layout and design, the material interference resistance of the equipment is enhanced, ensuring stable operation and convenient maintenance. Digitization: The hardware system adopts the latest ASK full digital scheme design, IN-depth depth collection technology, and real-time simulation collection methods. The optimized circuit design provides high integration, strong anti-jamming ability, and clear image processing features. Functionality: The equipment supports customization of additional functional modules based on customer requirements. It also offers open customized interfaces, such as AI intelligent identification (dangerous goods alarm function), to meet diverse needs. Ease of Use: The equipment features a simple and intuitive humanized operating interface, allowing users to easily use the device. Smart Conveyor Belt: The machine can automatically sense objects. When there is luggage placed on the machine, it starts running; otherwise, it remains stationary. One-key Operation: For shutdown, simply rotate the timing switch clockwise, and the equipment will automatically perform a safe shutdown procedure quickly and conveniently. Fault Self-inspection: In case of failure, the system can automatically detect and indicate the issue, facilitating maintenance. Product Specifications Basic Parameters Tunnel Size: 656 * 501mm (Width x Height) Conveyor Belt Speed: 0.22 m/s Conveyor Belt Load: 100 Kg (Uniform Load) Penetration: > 5 mm Steel Plate Line Resolution: > 38AWG (0.102mm) Spatial Resolution: Horizontal / Vertical ≥ 1.0mm X-ray Source Control Interface: Analog Control Interface Tube Voltage: 80 kV Tube Current: 0.6 mA Cooling Method: Oil Cooling, Industrial Fan Heat Dissipation Working Period: 100%, No Preheating Required Protection Functions: Overvoltage, Overcurrent, Overheat Protection Installation Data Noise Level: < 60 dBA Weight: 300 kg Power Consumption: 0.5 kW (MAX) Power Supply: AC220V ± 10%, 50 Hz ± 5Hz Tunnel Height: 664 mm Device Size: 1875 mm (L) * 934 mm (W) * 1300 mm (H) Packaging Size: 2040 mm (L) * 1020 mm (W) * 1530 mm (H) Working Temperature / Humidity: 0°C ~ 45°C / 20% ~ 95% (Non-condensing) Storage Temperature / Humidity: -20°C ~ 60°C / 20% ~ 95% (Non-condensing) Working Voltage: 220 VAC (±10%) 50 ± 3 Hz Radiation Safety Standards Leakage Dose Rate: < 0.5 μGy/h (Distance from Outer Shell 5 cm) Single Dose: < 5.0 μGy Safety: Suitable for Bulk Items, Chips, Electronic Products Radiation Protection: The entrance and exit of the tunnel adopt 0.5 mm Pb single-layer environmental protection lead curtain protection, while the main body uses 2~6 mm lead plate protection, ensuring that the external radiation meets national safety standards.

---
