Spot Supply Injection Molding Machine Companies Production of Chair

US$18,000.00-565,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM2000
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Available to Service Machine
Voltage
380V/50Hz, According to Countreis
Showroom Locate
Malaysia, Russia, Turkey, Uzbekistan
Condition
New
Injection Weight
9105g PS
Space Between Tie Bar
1620X1480 mm
Machine Weight
128 Ton
Transport Package
Standard Package
Specification
15.60x3.50x4.00
Trademark
HIGHSUN
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Product Description

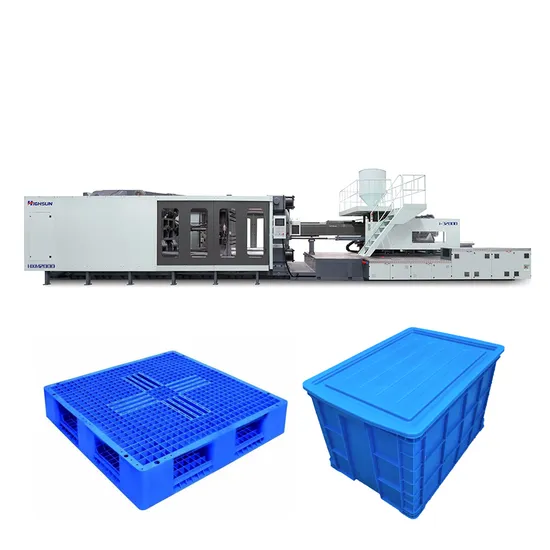

1.Picture
MODEL: HXM2000
TECHNICAL PARAMETER TABLE A B C D
INJECTION UNIT SCREW DIAMETER mm 130 140 150 160
SCREW L/D RATIO L/D 23.7 22 20.5 19.2
INJECTION CAPACITY IN THEORY cm3 8627 10005 11486 13069
INJECTION WEIGHT(PS) g 7851 9105 10452 11892
oz 276.9 321.1 368.6 419.4
INJECTION PRESSURE MPa 186 161 140 123
INJECTION RATE g/s 1162 1348 1548 1800
PLASTICIZING CAPACITY g/s 141 150 158 162
SCREW SPEED rpm 90
CLAMPING UNIT CLAMPING FORCE KN 20000
MOVING MOULD-PLATE STROKE mm 1560
MAX. MOULD HEIGHT mm 1560
MIN. MOULD HEIGHT mm 710
SPACE BETWEEN TIE-BARS (W×H) mm 1620x1480
HYDRAULIC EJECTOR FORCE mm 480
HYDRAULIC EJECTOR STROKE KN 400
EJECTOR NUMBER n 33
OTHERS PUMP PRESSURE MPa 16
MOTOR /DRIVING POWER KW 37x4
HEATING CAPACITY KW 103.5
MACHINE DIMENSION (L×W×H) m 15.60x3.50x4.00
MACHINE WEIGHT t 128
OIL TANK CAPACITY L 3500

2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many well-known merchants
7.Client in Malaysia
