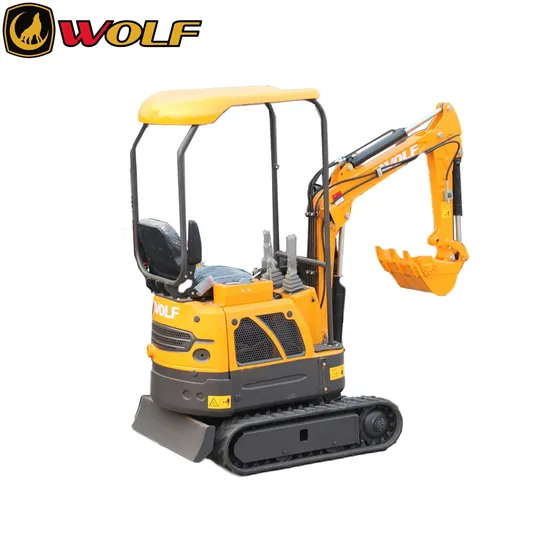

Economic Wolf China Minibagger with Special Prices

US$4,300.00

1-5 SET

US$4,000.00

6-12 SET

US$3,900.00

13+ SET

Basic Info.

Model NO.

WE08

Bucket

Backhoe

Transmission

Hydraulic Transmission

Drive Type

Electric Drive

Bucket Capacity

0.02m3

Size

Small-Scale

Certification

CE, ISO9001: 2000

Condition

New

Warranty

1 Year/12 Months

Machine Weight

750kg

Rated Power

8.6kw

Bucket Width

350mm/200nn

Engine Displacement

0.211L

Travel Speed

1.5km/H

Overall Dimension( Lxwxh)

1877X896X1990 mm

Max. Digging Depth

1500 mm

Max. Digging Height

2365 mm

Max. Dumping Height

1655 mm

Engine

Changchai or Koop 192f

Cylinder

Single Cylinder

Standard Bucket

200/380mm

Attachments

Auger, Hammer, Log Grapple, Trailer

Quick Hitch

Manual

Transport Package

8 Sets/20gp

Specification

CE, ISO

Trademark

WOLF

Origin

Shandong

HS Code

84295219

Production Capacity

3000 Sets/Year

Product Description

1.Features.
- CE certification.
- Optional hydraulic quick hitch, hammer, ripper and drill.
2. Standard configuration
Koop single cylinder E5 engine included,
Bucket capacity 0.02m3/100kg, operating weight 750kg, max. digging depth 1500mm, max. digging height 2365mm,
Standard bucket 200mm/380mm. Rubber track.

Operating Weight	750kg
Digging bucket capacity	0.02cbm/100kg
Bucket width	350mm / 200mm
Rated power	8.6kw / 11.7HP/1800r/min
Displacement	0.211 L
Bore stroke	70x55
Main pump Displacement	6.8ml/r
Travel speed	1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)	1877x896x1990 mm
Wheelbase	770 mm
Total length of track	960mm
Platform ground clearance	376 mm
Platform back turning radius	664 mm
Chassis width	896 mm
Track width	130 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max.Digging depth	1500 mm
Max.Vertical digging depth	1376 mm
Max.Digging height	2365 mm
Max.Dumping height	1655 mm
Max.Digging radius on ground	2560 mm
Min.Rotation radius	1200 mm
Max.Upgrade height of bulldozer blade	165 mm
Max.Digging depth of bulldozer blade	170 mm
