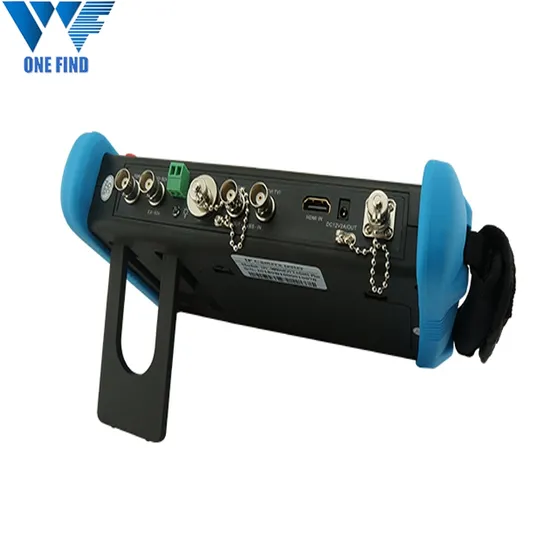

IPC9800 7inch IP Camera Tester cctv ip camera tester H.265 4K 1080P CCTV Monitor 8MP TVI CVI AHD SDI CVBS ipc cctv tester Features:
7 inch IPS touch screen, 1920x1200 resolution 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI* H.265/H.264, 4K video display via mainstream Dahua, Hikvision, Axis etc ONVIF camera test Built in WIFI, create WIFI hotspot HDMI input & output, support1080p DC12V 3A, DC48V PoE power output, max power 25.5W Rapid ONVIF, auto view video and create testing report UTP cable tester/RJ45 cable TDR test, cable quality test Tester Play: Tester, mobile phone, PC display at the same time
| LCD | Item series | IPC-9800 Pro series | |
| | Display | New 7 inch IPS touch screen, 1280*800 resolution | |
| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | |
| | | Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement |
| | | PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| | | CVBS loop test | Send and receive color bar signal to check BNC cable |
| | IP camera test
8K/H.265 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| | | Rapid Video | Auto view the video, create testing report |
| | | Hik test tool | Activate Hikvision camera, modify the user name, password and IP parameters |
| | | Dahua test tool | Dahua camera test, modify the user name, password and IP parameters |
| | IP & CVBS test | IP & CVBS test at the same time, converter test from analog to digital with dual test window |
| | Coaxial HD test * | 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control & call OSD menu * |
| | | 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu * |
| | | 8MP AHD test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu * |
| | | 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu* |
| | HDMI in & out* | Support HDMI input 4K 30FPS, HDMI output 4K 60FPS * |
| | VGA input* | Support 1920*1080P* |
| | Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back |
| Analog Video out | Color bar generator | Output one channel PAL/NTSC color bar signal for testing monitor or video cable |
| Power output | PoE power output | 48V PoE power output, max power 30W |
| | DC12V power | DC12V 3A power output |
| Cable test | TDR cable test * | BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. measurement range 1.2KM * |
| | Digital cable tracer * | Search BNC cable, network cable and telephone cable from the mess cables, more accurately* |
| | UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen |
| | RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M |
| TesterPlay | Screen projection: Tester, mobile phone and PC display at the same time (For android mobile phone) |
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| Wi-Fi | Built in WIFI, speeds 150M, display wireless camera image | |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | |
| PoE test | Measurement PoE switch or PSE power supply voltage and cable connection status | |
| Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface | |
| External power supply | DC 12V 2A | |
| Battery | Built-in 7.6V Lithium polymer battery, 7800mAh | |
| Rechargeable | After fast charging 3.5 hours, normal working time 16 hours | |
| Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc | |
| Auto off | 1-30 (mins) | |
| Working Temperature | -10ºC---+50ºC | |
| Working Humidity | 30%-90% | |
| Dimension/Weight | 240mm x 154mm x 46mm / 2KG | |
3). Adaptor DC12V 2A/ 8GB SD card
5). Tool bag / DC Power cable/BNC cable/ RS485 cable/ Audio cable/ Safety cord
6). Manual
