Single-Shaft Screw Ribbon Blender for Bulk Material Mixingstainless Steel Hjj Series Single-Shaft

Product Description

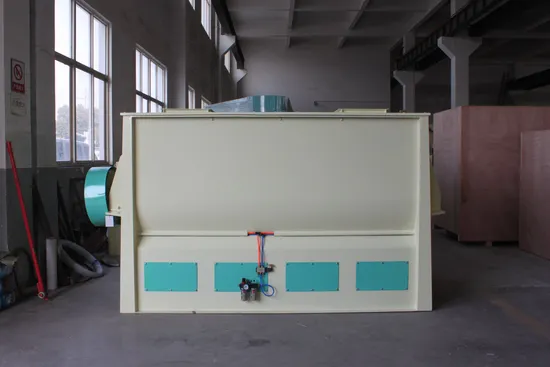

Single-Shaft Screw Ribbon Mixer
Application: Animalfeed, Aquatic Feed, Additives, Chemical And Medicine Industries, Etc.
Capacity:1000KG/BATCH
Main Power:15KW Mixing and mixing mild, high uniformity, no segregation; smooth transmission, low wear; can be equipped with multiple atomizing nozzles for liquid addition; easy maintenance.
Technical Features Of Twin-Shaft Paddle Mixer 1.Short Mixing Time : An average mixing cycle for dry mixing can be as follows: filling 20-30 seconds, mixing 40-60 seconds and discharging 10-20 seconds. This gives a total cycle time of 1.5 - 2 minutes.
2.Higher Throughput : Because of the short mixing time,thus resulting in savings, both in investment costs and space requirements.
3.Gentle Mixing.Shear is very low, As a result extremely fragile materials can be mixed with minimal degradation.
4.Easy Cleaning of Mixer : Side access doors for entry into the mixer interior can be provided. These also provide access for cleaning the mixer internals after completion of the batch.
5.Reliable Scale Up : The simple design and mixing principle ensure that lab test-results can be reliably scaled-up to production levels.
6.Lower Production and Maintenance Costs : The benefits of the mechanical fluidizing zone are gentle mixing, no segregation and very short mixing time. This gives savings in terms of minimal wear and tear and low energy consumption. Maintenance costs are also very low.
Applications Of Twin-Shaft Paddle Mixer
The rotor of the single-axis spiral mixer is composed of two belt-type spirals with opposite driving directions. It has strong stirring ability, short time required for mixing materials, good mixing uniformity, large bottom door, pneumatic discharge, minimal residual Missing material.
Working Principle Of SLHY Single Shaft Screw Mixing Machine Single shaft screw mixer rotor is consist of two aspects pivot near the band or spiral, whose stirring time is short, strong stirring, high yield and high mixing uniformity, and it is ideal equipment for feed, dry powder and compound fertilizer factory.
The machine includes lid, rotor, casing, discharging device and other parts. Raw materials are premix materials are put into mixing room from upper inlet, rotor driven by reducer motor and composed of different directions ribbon screw blade and main shaft. When rotor working, left hand helix and right hand helix will make materials push in the opposite direction so that the materials can be mixed uniformly.

Model Specifications	SLHY0.12	SLHYO 2	SLHY0.5	SLHY1.0	SLHY2.5	SLHY5	SLHY7.5	SLHY10
Power(kw)	0.75	2.2	3.0	7.5	15	30	45	55
Production(kg/p)	50	100	250	500	1000	2000	3000	4000

Production line projects Production line business plan Why Choose Jastec?
More professional and better understand you. 1. Engineers who can work for machinery overseas (all prefectures).
2. JASTEC overseas service centers are available (Showroom in europe,north america,southeast asia).
3. Overseas third-party support is available (europe,north america,asia).
4. JASTEC engineers have more than 15 years of professional experience in the drying industry, engaged in design,mechanical drawing, electrical automation editing, etc.
5. JASTEC have rich experience in project management and advanced on-site construction technology; We have gained
good performanceand a well-known reputation.
Company Profile
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc. Jastec has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS etc. As the members of China National Standardization technique Committee for Industrial Equipment,testified by experience of long-term users, our machine and production line have very high stability and reliability, which have been sold to more than 160 foreign countries like Asian, African,European, American. Jastec have established branch offices and showrooms in Europe and North America. For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality, low energy cost but efficiency equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The Jastec equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration--Our pursuit is to supply the best cost-effective machines in the world. In this 21-century full of opportunities and challenges, Jastec will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
