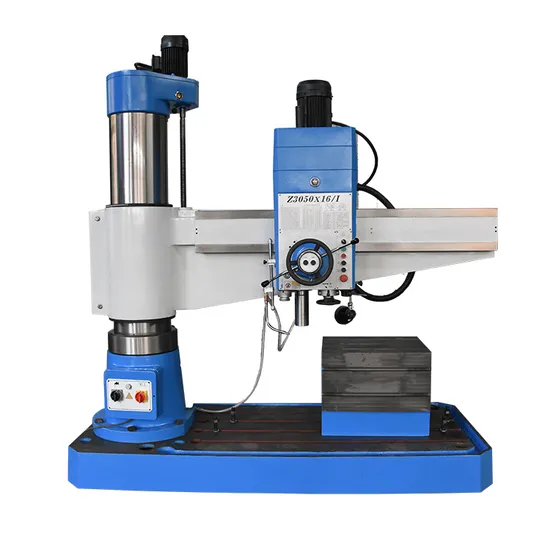

Jiechu28mm China Radial Drilling and Tapping Machine

US$2,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Controlling Mode

Artificial

Number of Shaft

Hole Diameter

<50mm

Automatic Grade

Manual

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Power Type

Electric

Drill Capacity

32mm-80mm

Beam Length

1100mm-2000mm

Drive Type

Mechanical/Hydraulic

Transport Package

Plallet

Specification

32mm-80mm

Trademark

BOLI

Origin

China

HS Code

8459290000

Production Capacity

5000

Product Description

RM4011/RM4014/RM5016 Radial Drilling Machine
· Mechanical driven
· Mechanical clamping
· Mechanical changing speed
· Up & down by power
· Auto feeding
Standard Accessories:
> Rise block
> Taper sleeve
> Tool releasing wrench
> Drift
> Eyelet bolts
> Box work table
Optional Accessories:
> Quick instead chuck
> Tapping chuck
> Angle work table
Technical Parameters:

Model No.	Unit	RM4011	RM4014	RM5016
max drilling capacity	mm	40(1.57")	40(1.57")	50(1.97")
distance between spindle surface to work table	mm	260~1050(10.24"~41.34")	260~1150(10.24"~41.34")	260~1150(10.24"~41.34")
distance between spindle center to column center	mm	360~1100(14.17"~43.31")	360~1400(14.17"~55.19")	360~1600(14.17"~63.00")
spindle travel	mm	200(7.87")	200(7.87")	220(7.87")
spindle taper		MT4	MT4	MT5
spindle speed range	r.p.m.	75,130,240,380,660,1200	75,130,240,380,660,1200	78,135,240,350,590,1100
spindle steps	steps	6	6	6
spindle feed range	r.p.m.	0.10~0.25	0.10~0.25	0.10-0.56
spindle feed steps	steps	3	3	6
spindle rotary angel	°	360	360	360
main motor power	kw	2.2	2.2	4
up & down motor power	kw	0.75	1.5	1.5
packing size	mm	1500×705×2200	1800×810×2300	2170×950×2450
G.W.	kg	1600	2200	2800
