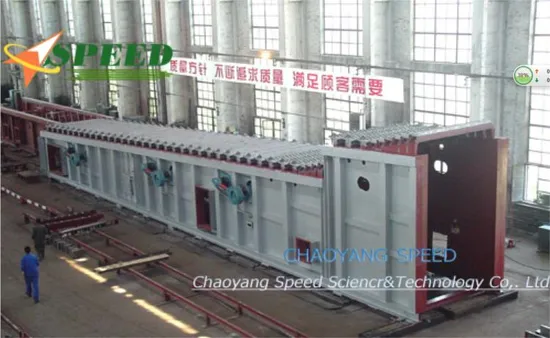

Generation III High Efficiency Grate Cooler

Product Description

Grate cooler
Description:
We research and develop the Third Generation Grate Cooler. Recently we provide varieties of grate coolers types such as 500t/d,600t/d,800t/d,1000t/d,1200t/d,1500t/d,1800t/d,2000t/d ,2500t/d,2800t/d,3000t/d, 3200t/d,4000t/d. Such grate cooler adopts reliable and latest techniques.
The advantages that Third Generation Grate Cooler provide: Double inclined grate bed, Three air supplying units (Over 800t/d) located in the first chamber, The second chamber adopts the high resistance and low leakage combined box inflatable grate plate material, Back cooling zone using high resistance and low leakage.
Grid plate: Long working service life/Good sealing quality of movable slip joint compensation device
Product Advantages:
1. High cooling efficiency and first-class unit area production of grid plate.
2. Reliable running system, less malfunctions come from advanced design and excellent manufacturing.
3. Long service life of components, especially the grid plate (Service life is 3 years).

Specificaton
1.capacity:500t/d\600t/d\800t/d\1000t/d\1200t/d\1500t/d\1800t/d\ 2000t/d \2500t/d\2800t/d\3000t/d\3200t/d\4000t/d
2.Temperature of clinker out of grate cooler : ≤circumstance temperature+65°C
3.Temperature of Secondary air: ≥1000°C(≥1200°C)
4.Temperature of third air: ≥°C(≥780~850°C)
5.Areaof grate and capacity of unit area :
capacity(t/d)	500	600	800	1000	1200	1500	1800	2000	2500	2800	3000	3200	4000
area of grate m2	14.5	15.5	20.1	25.5	27.9	34.3	41.1	45.7	58.8	65.7	69.5	75.5	94.4
capacity of unit area t/d.m 2	34.5	38.7	39.8	39.2	43	43.7	43.8	43.76	42.52	42.62	43.17	42.38	42.37
total weight(T)	70	75	82	87	90	96	120	163	187	209	223	240	302

If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials, feeding size, you required output size, capacity and other special requirement. Our engineer will choose the optimum type and our salesman will send you the reasonable price. Thank you.

---
