Patented Magnetic Coupling Seal Chemical Agitator Zero Leakage High Pressure Vessel

Product Description

Vessel Capacity m³: 34.5 Material: S30408+Q345R Design pressure MPa: 7.0 Design temperature ºC: 100 Work pressure MPa: 6.0 Work temperature ºC: 80 Working life: 10 years External half tube Capacity m³: 1.9 Material: 20/Q345R Design pressure MPa: 0.6 Design temperature ºC: 165 Work pressure MPa: 0.5 Work temperature ºC: 150 Medium: Steam Heat exchange area m2: 85.5 Coil tube Capacity m³: 0.60 Material: S32168 Design pressure MPa: 0.6 Design temperature ºC: 30 Work pressure MPa: 0.5 Work temperature ºC: 7 Medium: 7ºC water Heat exchange area m2: 60.6 Total weight Kg: 47618

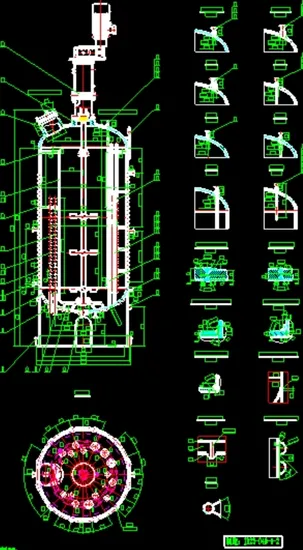

*For confidential reason, the drawing is in low definition. Please contact us for more information.

https://luhaochemreactors.en.made-in-china.com/product-list-1.html

LUHAO Chemical Machinery Co. Ltd

Pressure Vessel Design Information Collection Table

Vessel

Jacket (Coil)

Work Medium

Name

Components

Density (Kg/m³)

Characteristics

Viscosity (cP)

Flow Velocity(m³/h)

Design pressure (Mpa)

Work pressure (Mpa)

Design temperature(ºC)

Work temperature (ºC)

Wall temperature (ºC)

Diamter (mm)

Length (mm)

Capacity(m³)

Effective capacity (m³)

Corrosion allowance (mm)

Corrosion speed (mm/year)

Recommended Materials

Lowest value of average monthly temperature(ºC)

Site location

Installation condition

Indoor or Outdoor

Catalyst Volume(m³)

Catalyst Density(Kg/m³)

Heat Transfer Area()

Coil Specification

Basic Wind Pressure(Mpa)

Seismic Basic Intensity

Ambient Temperature(ºC)

Site Type

Operating Mode

Insulation Materials

Name

Thickness

Density (Kg/m³)

Seal Requirements

Liquid Level Gauge

Emergency Cut-off

Static Electricity Removal

Anti Eddy Current Requirement for Liquid Outlet

Installation and Mantainance Requirements

Expected Useful Life (years)

Safety accessories

Vessel

Jacket (Coil)

Location

Type

Specification

Quantity

Set pressure(Mpa)

Burst disc

Burst pressure(Mpa)

Safety discharge(kg/h)

Agitator

Type

Impeller Diameter(mm)

Speed(r/min)

Motor

Model

Power(kw)

Explosion Proof Grade

Speed reducer

Piping Table

No.

Dimension

Pressure

Connection Size Standard

Connection Surface Type

Function

a

b

c

d

e

f

g

h

j

k

Other Requirements if any

---
