Aluminum Alloy Display Rack 90 Degree Stainless Steel Sheet Notching Tube Machine

Product Description

Aluminum Alloy Display Rack 90 Degree Stainless Steel Sheet Notching Tube Machine
Angle Notching Machine Steel Pipe Notching Machine

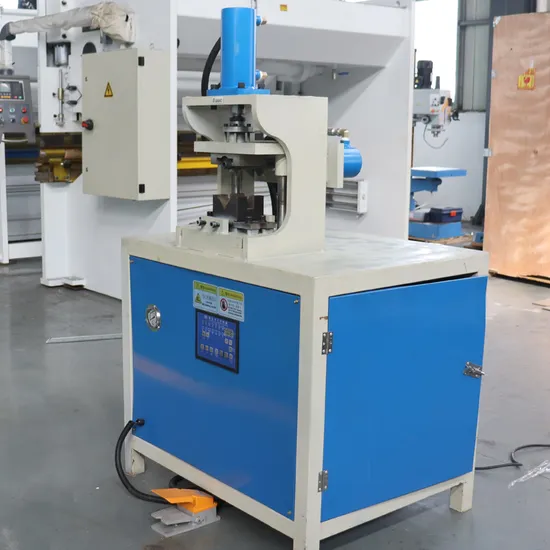

Our Hydraulic Punching, Cutting & Notching Machine combines precision engineering with robust construction to meet the highest industrial standards. Designed to handle a wide range of metalworking tasks, this machine offers superior performance for punching, cutting, and notching operations, making it an essential tool for manufacturing and fabrication processes.
Key Features:
1. Can install a variety of molds, punch 45 degrees, 60 degrees, 90 degrees angle to change the mold. It is used to fold the angle in half after punching the V notch on the pipe. The size and angle can be customized! The applicable range is generally between 45 degrees and 135 degrees.
2. Loading and unloading molds quickly, low skill content, novice rashly get started, reducing your labor costs and labor intensity of workers.
3. Compared with the traditional punching machine,1 second shearing and pressing, one fold forming,, no need to polish, the cut is flat without burr, and the folded surface is seamless butt joint. Fast punching speed, no deformation, low noise, accurate positioning, convenient operation, safe, energy-saving and environmental protection. The parameters are precise and the interface is tight and seamless, especially the close position of the arc point.
Applications:
This versatile machine is ideal for use in metal fabrication shops, construction projects, and manufacturing plants. Whether you are working on custom metal parts or large-scale production, our hydraulic machine ensures the highest level of performance and reliability.
Our customizable molds are engineered for precision and versatility, enabling you to create flawless products with consistent results. Whether you're manufacturing industrial components or crafting unique designs, these molds offer outstanding durability and accuracy. Key effects include:
High Precision Molding: Achieve intricate details with exceptional accuracy, ensuring each product meets your exact specifications.
Versatile Applications: Ideal for a variety of industries, including automotive, electronics, construction, and more, our molds can be customized to create a wide range of products, from small components to larger structures.
Enhanced Efficiency: With robust construction and easy customization, our molds speed up production processes, reducing lead times and improving overall efficiency.
Durability & Longevity: Built from high-quality materials, these molds are designed to withstand repeated use, ensuring long-lasting performance even in demanding environments.
Product Parameters

Type of Equipment	63	80	100	125
Max Tube Specification	50*50mm	80*80mm	100*100mm	100*100mm
Max Processing	1.0mm(Stainless Steel)	1.5mm(Stainless Steel)1.8mm (Copper,Alum,Iron)	1.8mm(Stainless Steel)2.5mm (Copper,Alum,Iron)	3.0mm(Stainless Steel)3.5mm (Copper,Alum,Iron)
Wall Thickness	1.2mm(Copper,Alum,Iron)
Punch Specification	3.5-15mm	3.5-20mm	3.5-30mm	3.5-40mm
Power Spesification	380+10V 50HZ
Total Power	3KW	4KW	5.5KW	7.5KW
Max Working Pressure	80Mpa	100Mpa	150Mpa	200Mpa
Size	500*810*1360mm	500*810*1360mm	580*810*1400mm	650*950*1500mm

	High pressure precision cylinder Double oil seals, high temperature paint, welding reinforcement, to ensure zero oil leakage, suitable for long-term work
	The electromagnetic valve Precision oil circuit block, fast oil return, adjustable pressure
	Pure copper motor High efficiency, novel structure, beautiful appearance, low noise, low vibration and high insulation level
	Stroke sensor Divided into upper, middle and lower, three sensors, which can be adjusted manually
	Control panel Humanized control, one-key operation, easy to understand
	Foot switch Sensitive operation and simple control
