Universal Vertical Milling Drilling Machine Price Zx7550cw

US$2,200.00-3,500.00 1 Set (MOQ)

Basic Info.

Model NO.
ZX7550CW
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Max.Drilling Diameter
50mm
Max.End Milling Width
100mm
Max.End Milling Diameter
25mm
Max.Boring Diameter
120mm
Max.Tapping Diameter
M16mm
Spindle Taper
ISO40
Overall Size
1280×1285×2080mm
Motor Power
1.5kw (H)/2.2kw (V)
Machine Weight
850/1000kgs
Spindle Travel
127mm
Transport Package
Wooden Case
Specification
ZX7550CW
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month

Product Description

Main technical parameters ZX7550CW
Max.drilling diameter 50mm
Max.end milling width 100mm
Max.end milling diameter 25mm
Max.boring diameter 120mm
Max.tapping diameter M16mm
Distance from spindle end face to table sueface 50-350mm
Vertical spindle
Spindle taper ISO40
Spindle speed number 8
Spindle speed range 140 ~ 2100 rpm
Spindle travel 127mm
Horizontal spindle
Spindle taper ISO40
Spindle speed number 9
Spindle speed range 70 ~ 2160 rpm
Table size 800×240mm
Table stroke 400×230mm
Overall size 1280×1285×2080mm
Motor power 1.5KW (H)/2.2KW (V)
Machine weight 850/1000kgs
Diameter Screw
X Axis 25MM
Y Axis 28MM
Z Axis 30MM

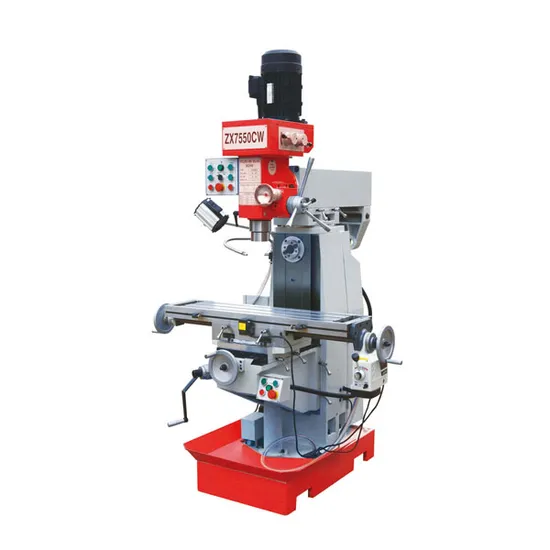

ZX7550CW , Drilling and Milling Machine
Features:
1. Use as milling machines and drill press
2. Easily shiftable gear drive high low two steps spindle speed.
3. Head swivels into the horizontal level on both sided 90 degree.
4. Manual fine-feed for the spindle quill
5. With horizontal milling spindle.
6. Wotktable can be swivel ±45 degree.
