Noninvasive Blood Capillary Microcirculation Microscope, Capillaroscope, Subhealth Detector

Product Description

Product Description

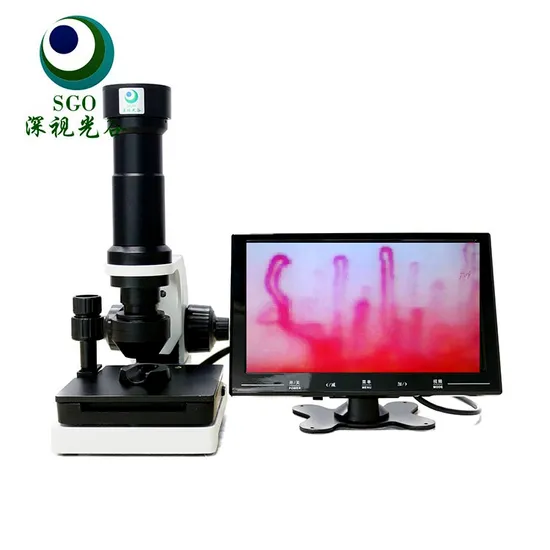

Teaching grade infinity biomicroscope, multiple configurations available, binoculars/trinoculars, imaging system can be connected to a large monitor, connected to a computer, as well as an all-in-one small screen with photographic measurement capabilities.

Model	SGO-QY990
Magnification	350X(7 inch) 380X(9 inch) 400X(10 inch)
Display size	150mm*80cm(7 inch) 200*120mm(9inch) 230*130mm(10inch)
Objective	10 times
Focusing	Coaxial coarse, fine adjustment,Z axis movement ,Mechanical upper and lower position
Stage	360°revolve, X,Y axis movement ,moving range 30*80mm
Illumination	LED illumination,High brightness,lower power,energy conservation
Input voltage	12V
Camera	Color imported camera,HD LCD (7/9/10/)
Carton size	200*290*365mm
Gross Weight	(7 inch)4.8KG (9inch)5KG (10 inch)5.3KG
Spare parts	carton ,Aluminum alloy box ,microscope,displayer,adapter,Oil,instructions,wall chart ,Sponge pad etc.
Warranty	One year

5
How to find the clear first line of capillary in finger nail.
Step 1...Put the cedar oil on the verge of the finger and skin of the ring finger as bellow, put the verge of finger directly under the light source ( If there is no Cedar oil then please use baby oil or olive oil instead )
Step 2. Rotate the coarse handwheel to see the picture as bellow. The bigger one is the coarse adjustable wheel and the small wheel is the fine handwheel
Step 3. Just the X-Y wheel to get a correct position of the first line of the vessel(capillary tube) and then adjust the fine coarse handwheel to get a clear picture of the vessel. Usually we observe the first line of vessels which is large and obvious. So try to find the first line of vessels by rotating the X-Y wheel to change the position of the finger. And finally rotate the fine handwheel (the position in showed on step 2) to get a clear picture of the vessels
Step 4 If. there is spot on the screen, rotate the camera right and left to eliminate it.
Technical parameters
1.magnification over 380 times
2. built-in camera: 380 000 pixels
3. light source LED
4.brightness of the light source over 600cd/m2
5. Stage X-Y double layer compound mechanical stage
6. Color LCD monitor 7 inch (16:9)/8 inch (4:3)
7.AC input 100~240V50/60Hz DC output DC12V,2A

---
