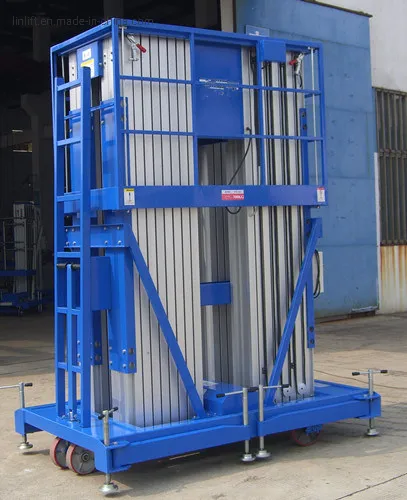

14 Meters Mobile Aluminium Aerial Work Platform (four mast)

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
GTWY14-400
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Safety System
Carrying Capacity
Light Level
Moves
Moving
Driven Type
DC
Running Mode
Moving
Feature
Safety System
Certification
CE, ISO 9001
Working Height
11.7m-16.7m
Lifting Height
10m-15m
Lifting Motor
220V/2.2kw
Platform Size
1400*800mm
Transport Package
Standard Export Package
Specification
ground clearance: 60mm
Trademark
LINLIFT
Origin
Hangzhou Zhejiang
HS Code
84279000
Production Capacity
2000PCS/Year

Product Description

10 Meters Mobile Aluminium Work Platform (four mast)
1.CE certificated 2.Suitable for two persons work on 3.Best quality and performance
4.Good reliable after-sales service
model GTWY10-400 GTWY12-400 GTWY14-400 GTWY15-400
max.platform height 10000mm 12000mm 14000mm 15000mm
working height 11700mm 13700mm 15700mm 16700mm
ground clearance 60mm 60mm 60mm 60mm
lift rated capacity 300kg 300kg 300kg 200kg
platform size 1400*800mm 1400*800mm 1400*800mm 1400*800mm
outspread size 2380*2210mm 2380*2210mm 2480*2210mm 2480*2210mm
electrical source AC 220v 220v 220v 220v
lifting motor AC 220V/2.2KW 220V/2.2KW 220V/2.2KW 220V/2.2KW
overall length 1700mm 1700mm 1800mm 2000mm
overall width 1100mm 1100mm 1100mm 1200mm
overall height 2050mm 2320mm 2520mm 2680mm
overall net weight AC 1100kg 1150kg 1200kg 1390kg
