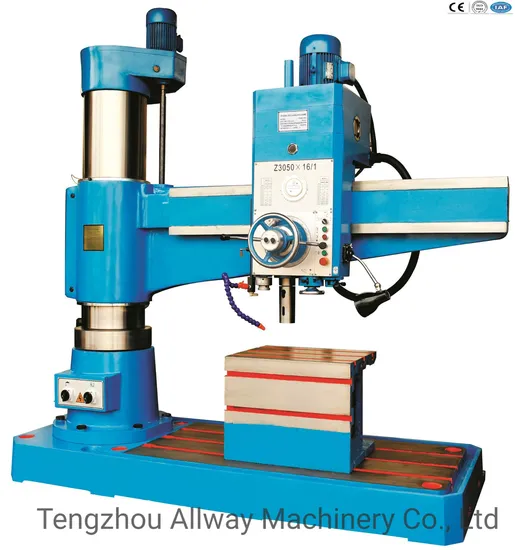

Hydraulic Radial Drilling Machine Z3050X16/1

Product Description

Z3050*16/1 Hydraulic radial drilling machine is a double column, all hydraulic radial drilling machine. With widely use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.

Product Parameters
Product main technical parameters:

SPECIFICATIONS	Units	Z3050xl6/1(Hydraulic)
Max. drilling dia.	mm	50
Distance between spindle nose and table surface	mm	320-1220
Distance from spindle axis to column surface	mm	370-1620
Spindle travel	mm	315
Spindle taper	-	MT5
Spindle speed range	rpm	25-2000
Spindle speed steps	-	16
Spindle feed range	mm/r	0.04-3.2
Spindle feed steps	-	16
Main motor power	kw	4
Lifting motor power	kw	1.5
Machine meight	kg	3500
Overall dimension	mm	2500*1060*2800

---
