High Rmp Zkzf Deep Groove Ball Bearings 6201 6202 6203 6204 6205 Zz 2RS C3 Auto Parts Machining Parts Industrial Ball Bearing China Bearing

Product Description

Product Description
Why Choose ZKZF Bearings?
1.Factory direct sell with more than 10years manufacturing experience
2.Full ranges of bearings can meet different demands
3.Fast delivery time with morden production eqiupment
4.Free Sample available
5.OEM&ODM acceptable
6.Bearings on high Precision,Low Noise ,low vibration,smooth rotation
Ball Bearing Specification:

Seals Types	ZZ,Z,2RS,rs,RZ,2RZ,OPEN
Vibration Level	Z1V1,Z2V2,Z3V3
Clearance	C2,C0,C3,C4,C5
Tolerance Codes	ABEC-1,ABEC-3,ABEC-5
MOQ	1pc at least
Delivery Time	5-10 days
Payment Terms	TT/PAPAL/WESTERN UNION
Package	Tube package+outer carton+pallets;Single box+outer carton+pallets; Tube packge+middle box+outer carton+pallets;According to your requirement

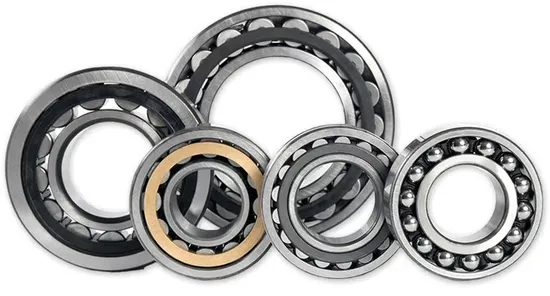

Detailed Photos
Deep Groove Ball Bearing Models and Parameters:
6000 series deep groove ball bearings:

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
604	4	12	4	0.2	0.97	0.36	36000	44000	0.0021
605	5	14	5	0.2	1.33	0.505	32000	40000	0.0035
606	6	17	6	0.3	2.19	0.865	30000	38000	0.006
607	7	19	6	0.3	2.24	0.91	28000	36000	0.008
608	8	22	7	0.3	3.35	1.4	26000	34000	0.012
609	9	24	7	0.3	3.4	1.45	24000	32000	0.014
6000	10	26	8	0.3	4.55	1.96	22000	30000	0.019
6001	12	28	8	0.3	5.1	2.39	19000	26000	0.021
6002	15	32	9	0.3	5.6	2.83	18000	24000	0.03
6003	17	35	10	0.3	6.8	3.35	17000	22000	0.039
6004	20	42	12	0.6	9.4	5.05	15000	19000	0.069
6005	25	47	12	0.6	10.1	5.85	14000	18000	0.08
6006	30	55	13	0.6	13.2	8.3	12000	15000	0.116
6007	35	62	14	1.0	16	10.3	10000	14000	0.115
6008	40	68	15	1.0	16.8	11.5	8000	11000	0.19

6200 Series Miniature Deep Groove Ball Bearing:

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
624	4	13	5	0.2	1.15	0.4	36000	45000	0.0032
625	5	16	5	0.3	1.76	0.680	32000	40000	0.0050
626	6	19	6	0.3	2.34	0.885	28000	36000	0.0080
627	7	22	7	0.3	3.35	1.400	26000	34000	0.0130
628	8	24	8	0.3	4.00	1.590	24000	32000	0.0170
629	9	26	8	0.3	4.55	1.960	22000	30000	0.0190
6200	10	30	9	0.6	5.10	2.390	19000	26000	0.0300
6201	12	32	10	0.6	6.10	2.750	18000	24000	0.0360
6202	15	35	11	0.6	7.75	3.600	17000	22000	0.0460
6203	17	40	12	0.6	9.60	4.600	16000	20000	0.0650
6204	20	47	14	1.0	12.80	6.650	14000	18000	0.1070
6205	25	52	15	1.0	14.00	7.850	12000	16000	0.1250
6206	30	62	16	1.0	19.50	11.300	10000	13000	0.2010

6800 Series Miniature Deep Groove Ball Bearing:

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
685	5	11	3	0.15	0.715	0.282	35000	45000	0.0011
686	6	13	3.5	0.15	1.08	0.44	33000	42000	0.0019
687	7	14	3.5	0.15	1.17	0.505	31000	40000	0.0021
688	8	16	4	0.2	1.61	0.715	29000	38000	0.0031
689	9	17	4	0.2	1.72	0.82	28000	36000	0.0032
6800	10	19	5	0.3	1.83	0.925	26000	34000	0.005
6801	12	21	5	0.3	1.92	1.04	22000	30000	0.006
6802	15	24	5	0.3	2.08	1.26	20000	28000	0.007
6803	17	26	5	0.3	2.23	1.46	19000	26000	0.008
6804	20	32	7	0.3	4	2.47	17000	22000	0.019
6805	25	37	7	0.3	4.3	2.95	15000	19000	0.022
6806	30	42	7	0.3	4.7	3.65	13000	17000	0.026
6807	35	47	7	0.3	4.9	4.05	11000	15000	0.029

MAIN PRODUCTS
Tapered roller bearings, cylindrical roller bearings, ball bearings, self-aligning roller bearings, base bearings, car hub bearings,
truck hub bearings and other products, We can customize the bearing according to the drawings or samples provided by the customer FIELDS OF APPLICATION
Grain machinery, textile machinery, washing machinery, engineering machinery, industrial deceleration machinery,
woodworking machinery, papermaking machinery, mining machinery, coal mining machinery, lifting machinery, construction
machinery,large transportation equipment,
chemical machinery, petroleum machinery, metallurgical industry, large steel mills, cement plants, energy industry, automobiles,
trucks, etc.
Packaging & Shipping
Plastic bag + single box + carton + tray;Industrial packaging + carton + pallet;
We also can According to your requirements to change.
Company Profile
Qingdao Changyue Trading Co., Ltd. was founded in August 2014. It is a bearing manufacturer integrating research, development and sale of bearings, with a floor area of 18,000 square meters and a plant area of 4,800 square meters. The company has a state-level enterprise technology center and a number of provincial high-tech enterprises with strong technical strength. our company was honored as competitive brand in the market.
Equipped with modern production equipment and advanced detection instruments, the company specially produces Bearings including three varieties of spherical roller bearings, namely cylindrical roller bearings, tapered roller bearings and thrust
spherical roller bearings, Automobile Hub Bearing,to replace imported high-end products.
With precision of grade P0, grade P6 P5 P4, we bearings are widely used in complete products in metallurgical, mining,petroleum, chemical, coal, cement, papermaking, wind power, heavy machinery, engineering machinery and port machinery industries. With self-run import & export rights, it sells its products not only across China, but also in tens of other countriesand areas such as the United States, Canada, Italy, Russia, German and South Africa.
We would like to serve the customers around the world with our trustworthy products, reasonable price and attentive service.
The leading products of the company cover three main categories which include more than 3,000 types of bearing products.
FAQ
1.What is your Before-sales Service?
Offer to bear related consultation about technology and application;Help customers with bearing choice, clearance configuration, products' life and reliability analysis;Offer highly cost-effective and complete solution program according to site conditions; Offer localized program on introduced equipment to save running cost
2.What is your latest delivery time?
If the goods are in stock, usually 5-10 days. Or if the goods are not in stock, it is 15-20 days, which is based
on the quantity.
3.Does your company have quality assurance?
Yes, for 2 years.
4.What is the competitiveness of your company's products compared to other companies?
High precision, high speed, low noise.
5.What are the advantages of your company's services compared to other companies?
Answer questions online 24 hours a day, reply in a timely manner, and provide various documents required
by customers for customs clearance or sales. 100% after-sales service.
6.Which payment method does your company support?
30% deposit,balance payment before delivery.
7.How to contact us quickly?
Please send us an inquiry or message and leave your other contact information, such as phone number,
whatsapp account or wechat account, we will contact you as soon as possible.

---
