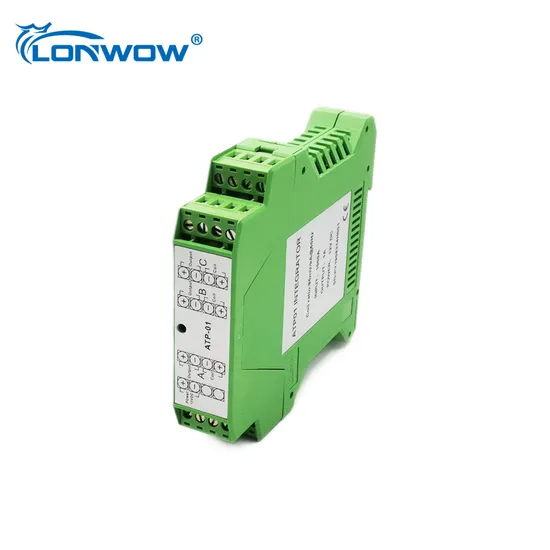

Signal ATP-01 DIN-Rail 1A Output Rogowski Coil Integrator

Product Description

Description: AT01 is a Three phase DIN-RAIL 1A Output Rogowski coil integrator installation in distribution box,in a plastic 1 module DIN-RAIL enclosure, powered directly from the mains.
A01 can be combined with any model and size of Y-FCT or FCT Rogowski coils.
The available values are: 0-1A AC.
On request the input value can be customized according to the application.
A01 and Rogowski coil is a very flexible system, suitable for high power load analysis, impulsive current monitoring, DC ripple measurement, etc.
Due to its specific features, flexible Rogowski coil is an extremely comfortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.
Specification:

Model	ATP-01
Rated output	1A AC rms
Maximum Output(overload)	1.5A AC rms
Rated ratio	100A 600A 1000A 3000A 6000A
Read Accuracy	0.5% typical at 1%(≥10A) to 110% of rated Current @25ºC
Phase error	≤0.5°
Linearity	±0.2% of reading(10% to 120% of range)
Bandwidth	30Hz to 5kHz
Maximum Burden	0.5Ω(each phase)
Measurement	Secondary CTs to measure output of integrator
Power consumption	10W
Output on 0A (zero drift)	≤0.01A
Temperature drift	200ppm/ºC
Weight	185g
Dimension	114*100*22.5mm
Power supply	12V DC
Operating temperature	-20ºC to 70ºC
Storage temperature	-30ºC to 90ºC
Relative humidity	80% max.without condensation
Protection degree	IP20
Other requirements,please contact us to OEM.
