Factory Price Bathroom Toilet Roll Paper Product Rewinding Machine

Product Description

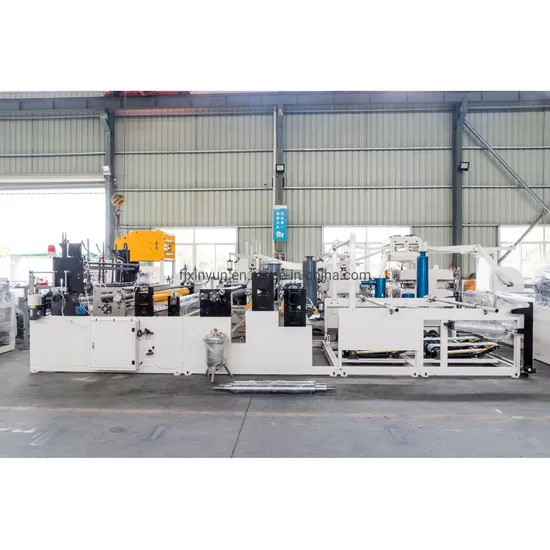

Product Overview XY-TQ-B Factory price bathroom toilet roll paper product rewinding machine Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements. Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate. VIDEO LINK: https://youtu.be/ViuQn3MSYUs
Production specifications

Machine Model	XY-TQ-B
Jumbo Roll Max Width	2800mm (Other size can be specified)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter	3inches(76.2mm) (Other size can be specified)
Perforation Distance	4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter	Φ90~φ280mm
Finished Product Core Diameter	φ38~φ76mm
Production Speed	200~230m/min
Program Controller	PLC( INVT )
Unwind Stands	2 Stands(Need to be specified)
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Main Power	14KW 380V 50HZ
Dimension	7000*4000*1900(L*W*H)
Weight	About 7T
Edge-Line Embossing	Steel to steel (Pneumatic Control)
Full Embossment	Steel to rubber.

Perforation Device Drawing Embossing pattern
Production line
Finished product Workshop
Company profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Packing and Shipping
FAQ
Q: Are you trading company or manufacturer A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

---
