Mg-C600 90PCS/Min Medium Middle Speed Single Double 2 Side PE Coated Disposable Paper Cup Glass Forming Making Producing Line Price Hot Cold Tea Espresso Coffee

Product Description

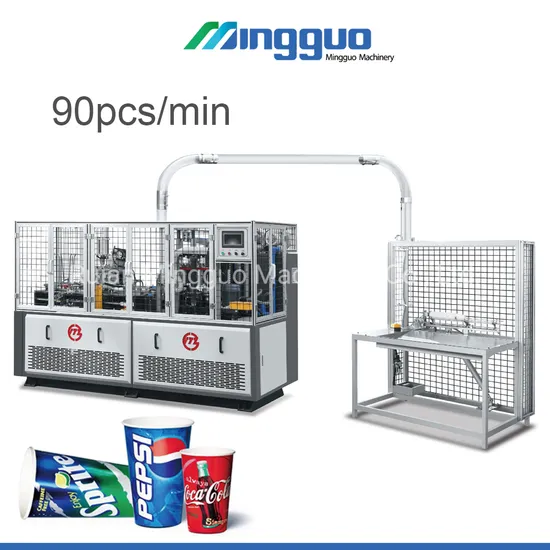

MG-C600, an upgraded single-rotary disc type low mold stroke paper cup machine based on MG-C700 (60-80pcs/min), achieves a faster cup making speed of 60-90pcs/min which benefits from the low mold stroke and the design of highly integrated working station, especially more suitable for paper cups of a single specification due to the inconvenience of molds replacement. Whole machine main transmission parts are equipped with automatic spray oil lubrication system to reduce wear and tear. Meanwhile, it adopts open type intermittent cam system and helical gear transmission, which makes up for the inherent insufficiency of jitter and unstable transmission of chain transmission and greatly prolongs the service life of the machine and reduces the failure rate of the machine. While ensuring high accuracy, it guarantees the stability of the machine's operation, low noise and high production capacity.
Cup wall and the bottom of the cup are sealed with LEISTER bottom heaters (Optional) and EVER GREEN ultrasonic welder (Optional) imported from Switzerland and Taiwan. The whole cup making process is controlled and monitored by Delta inverter, Delta servo feeding, Delta PLC, Delta human-computer interaction touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc., thereby improving the performance of the equipment and achieving fast and stable running. High degree of automation and automatic shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety.

Model	MG-C600
Paper cup specifications	4-16oz (100-450ml) (mold exchangeable) Top: 55-90mm Height: 60-135mm Bottom: 55-60mm
Paper specification	150-350 GSM single/double PE coated paper
Speed	60-90pcs/min
Voltage	220/380V
Full load power	7.5KW
Total weight	2500KG
Dimensions	2520*1350*1750mm
(NOTICE) Customization	Customizable Almost all of our paper container forming machines can be modified and customized for Paper cups and Paper bowls. Please let us know your cup/bowl specifications and any of the other requirements, we will offer the professional solution to you.

Some samples from our clients

Mingguo Machinery Co., Ltd. is a technology-based modern enterprise with acquired advantages that aims to lead innovation with technology and drive the future with ideas. We won the honorary title of Wenzhou Science and Technology Innovation Enterprise in 2015. Mingguo Machinery, which has developed rapidly in recent years, has obtained patents in various aspects. It's located in Feiyun district, Ruian city, Zhejiang province, which is well-located and has convenient transportation. It takes about 50-minute drive from Wenzhou Longwan International Airport and 15-minute drive from Ruian High Speed Railway Station. Our factory employs about 150 people and covers an area of about 20,000 square meters modern workshops. We are specialized in paper cup machine, paper bowl machine as well as a series of paper container machines, that of course, is a professional paper container machines enterprise with research, production, sales and service.
We have a strong technical force, sophisticated machining equipments and the ability of independent research and new product development with annual value of production of about 80 million CNY. Our products have passed ISO9001-2000 Quality Management System, European CE certification and get a number of utility model and invention patents. Under the efforts of the Mingguo people for many years, our products has been being sold throughout the China mainland and exported to Germany, France, Italy, Turkey, Oman, Jordan, South Korea, Australia, New Zealand, Egypt, Thailand, Philippines, India and many regions of other countries. Good Reputations are gained from clients at home and abroad.
Live on the development concept of "Integrity, Efficiency, Innovation, Transcendence", WE Mingguo Machinery will win the heart of the world with excellent equipment quality, reasonable prices, perfect after-sale service. Cordially welcome clients at home and abroad to negotiate businesses to cooperate and create brilliance.

1. What products can be made by your machines?
Tea cups, coffee cups, ice cream cups, noodle bowl, salad bowl, KFC bucket etc.
Almost all the regular or irregular paper containers for fast food and drinks

2. What volume of the cup/bowl/bucket that you can make?
From 2-190OZ, about 50-5000ml

3. Are you a source manufacturer?
Yes, any of the factory visit tour appointments at any time are acceptable and warmly welcomed

4. What about the payment term?
Usually 30%T/T in advance, 70% Balance before shipping

5. What should I let you know before getting a relatively accurate quotation?
--Sample pictures
--Specifications of cups (Top diameter, Bottom diameter, Height)
Draft is the best if possible.

--GSM of single/double PE coated paper
Warmly welcome to contact us
FOR more details and professional 1-to-1 service

---
