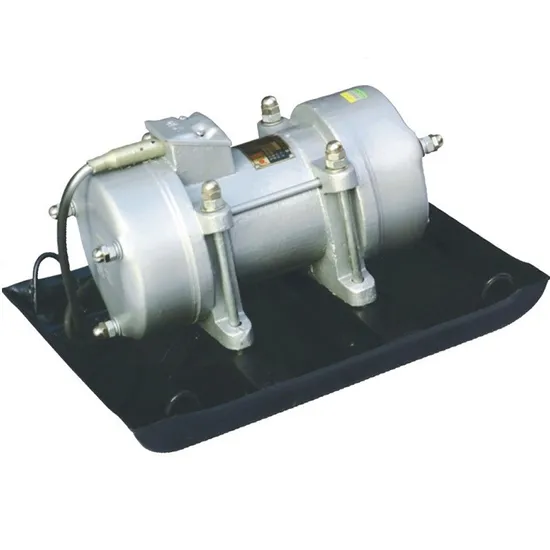

Factory Price External Vibrating Screed Table Vibrator Motor

Product Description

Hot sell ! External Concrete vibrator 0.75KW/1.1KW/1.5KW/2.2KW
The attached concrete vibrator is an essential tool that is widely used in the compaction work of concrete slabs in modern construction projects. It can be used for the surface vibration work of concrete foundation surface layers and various prefabricated concrete components. It can also be installed on various vibration tables and other vibrating devices as a vibration source.

Product Uses
The External concrete vibrator uses of the vibrator are on the vibrating table,brick making machine, and vibrating screen to provide vibrating motion. It also cancomes with a base plate. It is commonly seen on moderm construction sites. Where it is primarily used to consolidate the face of freshly-poured concrete foundation as well as compact the surface of pre-cast concrete .
Features
1. Attachment concrete vibrator is made up of rotor axles of single phase, three-phase Asynchronous motor installed eccentric blocks matching with motor power on Both sides.
2. The complete machine has performances of full closing and high strength, convenient To dismantle, install and maintain. Quad rubber cable consists of electric Wire.
3. The husk of a complete machine is fully made of aluminum alloy with lightness And high power. The caps of two ends are directly pieced together tightly with three Long bolts, which are fairly fastened.
Specification

ITEM	External vibrator
MODEL	ZW-15	ZW-35	ZW-70	ZW-90	ZW-100
Power (KW)	0.55KW	0.75KW	1.5KW	2.2KW	3.0KW
Speed(RPM)	2840	2840	2840	2840	2840
Centrifugal Force	350	350	700	980	1100
Voltage (V)	380/42	380/42	380/42	380/42	380/42
Frequency (HZ)	50/60	50/60	50/60	50/60	50/60
Weight (KGS)	11	13	19.2	28.8	31
Packing size (CM)	33*19*22.5	33*19*22.5	42*22*25	48.5*26.5*28

Detailed Photos

Application scenarios:

Production

Factory

Hot Products

Excavator	Surface Finishing Screed	Concrete Vibrator	Power Trowel
Remote Control Trowel	Concrete Mixer	Plate Compactor	Compactor Machine
Drywall Sander	Steel Bar Cutter	Vibratory Roller	Steel Bar Bender

FAQ

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

---
